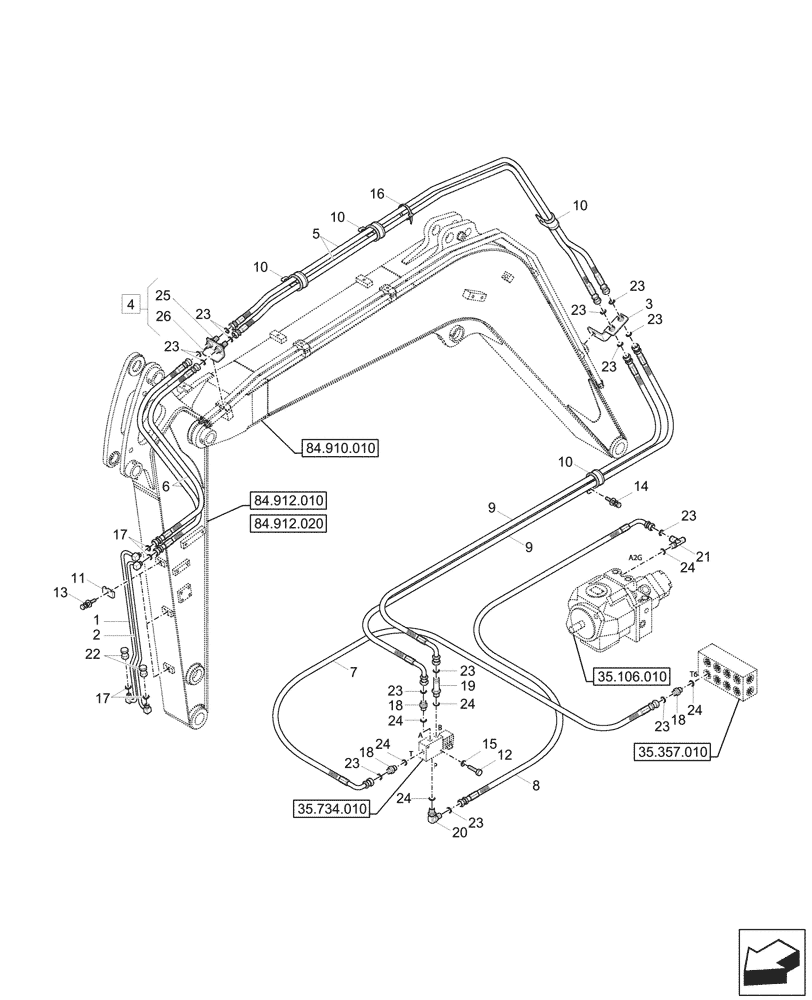

Запчасти Case CX60C (35.734.020) - VAR - 747064 - QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

31ML-90110

PIPE

1шт.

Arm Short (1.48 M), Var. 747078, 747320

1шт.

1

31ML-95110

PIPE

1шт.

Arm Long (1.9 M), Var. 747079, 747329

1шт.

2

31ML-90120

PIPE

1шт.

Arm Short (1.48 M), Var. 747078, 747320

1шт.

2

31ML-95120

PIPE

1шт.

Arm Long (1.9 M), Var. 747079, 747329

1шт.

3

31ML-90131

TERMINAL

1шт.

4

31M8-90131

TERMINAL

ASSY, Incl 25, 26

1шт.

5

P910-045055

HYDRAULIC HOSE

2шт.

6

P913-045018

HYDRAULIC HOSE

2шт.

Arm Short (1.48 M), Var. 747078, 747320

1шт.

6

P913-045025

HYDRAULIC HOSE

2шт.

Arm Long (1.9 M), Var. 747079, 747329

1шт.

7

P930-042021

HYDRAULIC HOSE

1шт.

8

P930-045044

HYDRAULIC HOSE

1шт.

9

P933-045041

HYDRAULIC HOSE

2шт.

10

31HA-10130

CLAMP

4шт.

11

31M6-75091

CLAMP

3шт.

Arm Short (1.48 M), Var. 747078, 747320

1шт.

Arm Long (1.9 M), Var. 747079, 747329

1шт.

12

S015-080506

BOLT,M8 x 1.25 x 50mm

2шт.

13

S035-082526

BOLT,M8 x 1.25 x 25mm

3шт.

14

S037-102526

BOLT,M10 x 1.5 x 25mm

1шт.

15

S411-080006

WASHER

2шт.

16

S554-054300

BAND

10шт.

17

S621-011001

O-RING,9/16 - 18 UNF

4шт.

18

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

3шт.

19

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

20

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

21

31N4-22170

TEE

1шт.

22

X710-100102

CAP

2шт.

23

S621-011001

O-RING,9/16 - 18 UNF

14шт.

24

S631-011004

O-RING,PF 1/4

6шт.

25

X540-120001

HYD CONNECTOR

2шт.

26

NSS

NOT SOLD SEPARAT

Plate, Incl in 4

2шт.
