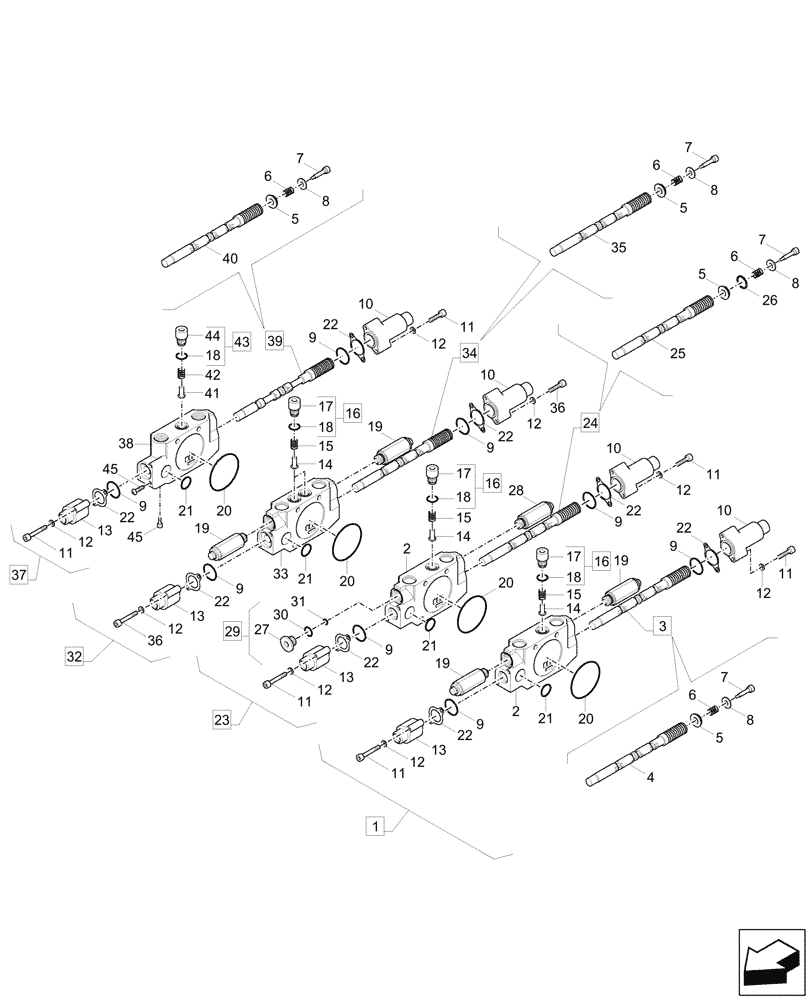

Запчасти Case CX57C (35.359.030) - VAR - 747077, 747093, 747122, 747123 - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

XKCG-00210

VALVE SECTION

Auxiliary, ASSY, Incl 2 - 22

1шт.

Double Acting Circuit, Var. 747122, 747123

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1, 23

2шт.

3

XKCG-00208

KIT

Spool, Rotator, ASSY, Incl 4, 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Rotator, Incl in 3

1шт.

5

XKCG-00109

SPRING SEAT

4шт.

6

XKCG-00108

SPRING

4шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 3, 24, 34, 39

4шт.

8

XKCG-00106

SPRING SEAT

4шт.

9

XKCG-00119

O-RING

8шт.

10

XKCG-00118

CAP

4шт.

11

XKCG-00117

ADJUSTING WRENCH

12шт.

12

NSS

NOT SOLD SEPARAT

Washer, Incl in 1, 23, 32, 37

16шт.

13

XKCG-00115

CAP

4шт.

14

XKCG-00090

POPPET

4шт.

15

XKCG-00091

SPRING

4шт.

16

XKCG-00092

PLUG

ASSY, Incl 17 (Qty 1), 18 (Qty 1)

4шт.

17

NSS

NOT SOLD SEPARAT

Plug, M14, Incl in 16

3шт.

18

XKCG-00103

O-RING

4шт.

19

XKCG-00130

HYDRAULIC VALVE

4шт.

20

XKCG-00112

O-RING

4шт.

21

XKCG-00097

O-RING

4шт.

22

XKCG-00111

GASKET

8шт.

23

XKCG-00100

VALVE SECTION

Boom/ Breaker, ASSY, Incl 2, 9 - 16, 20 - 22, 24, 28, 29

1шт.

24

XKCG-00120

KIT

Spool, ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 25, 26

1шт.

25

XKCG-00110

SPOOL

Boom

1шт.

26

XKCG-00105

SHIM

2шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 29

1шт.

28

XKCG-00114

HYDRAULIC VALVE

Overload

1шт.

29

XKCG-00113

PLUG

ASSY, Incl 27, 30, 31

1шт.

30

XKCG-00059

O-RING

1шт.

31

XKCG-00101

O-RING

1шт.

32

XKCG-00225

BLOCK

Arm, ASSY, Incl 9, 10, 12, 14 - 16, 19 - 22, 33, 34, 36

1шт.

33

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

34

XKCG-00224

KIT

Spool, Arm, ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 35

1шт.

35

NSS

NOT SOLD SEPARAT

Spool, Arm, Incl in 34

1шт.

36

XKCG-00073

BOLT

4шт.

37

XKCG-00147

VALVE SECTION

Travel, LH, ASSY, Incl 9 - 13, 20 - 22, 38, 39, 41 - 43, 45

1шт.

38

NSS

NOT SOLD SEPARAT

Body, Work, Incl in 37

1шт.

39

XKCG-00149

KIT

Spool, Travel, LH, ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1), 8 (Qty 1), 40

1шт.

40

NSS

NOT SOLD SEPARAT

Spool, Travel, Incl in 39

1шт.

41

XKCG-00144

POPPET

1шт.

42

XKCG-00143

SPRING

1шт.

43

XKCG-00142

PLUG

ASSY, Incl 18 (Qty 1), 44

1шт.

44

NSS

NOT SOLD SEPARAT

Plug, M14, Incl in 43

1шт.

45

XKCG-00050

SCREW

2шт.
