(35.357.030) - VAR - 747076, 747077 - PILOT CONTROLS, AUXILIARY CIRCUIT

Запчасти Case CX57C (35.357.030) - VAR - 747076, 747077 - PILOT CONTROLS, AUXILIARY CIRCUIT (35) - HYDRAULIC SYSTEMS

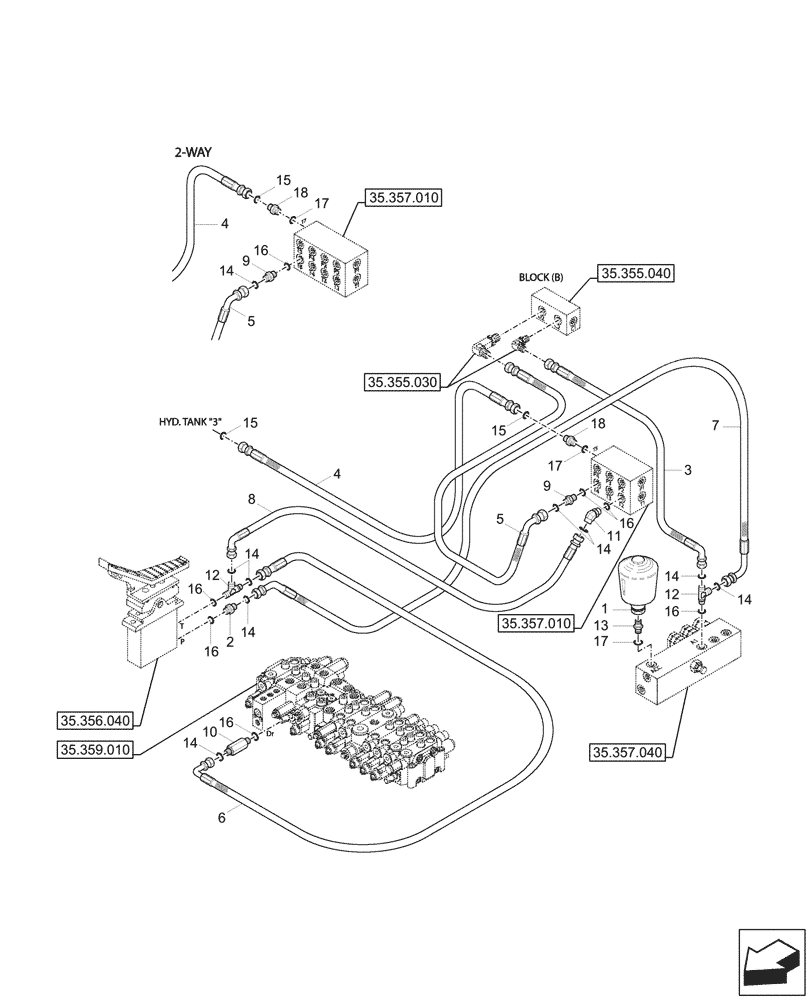

Схема запчастей Case CX57C - (35.357.030) - VAR - 747076, 747077 - PILOT CONTROLS, AUXILIARY CIRCUIT (35) - HYDRAULIC SYSTEMS
35.359.010
14
4
18
4
14
8
17
17
14
6
16
10
16
18
2
12
13
17
14
14
5
16
9
14
5
14
12
16
15
15
9
3
15
16
16
11
7
1
35.356.040
35.357.040
35.357.010
35.357.010
35.355.030
35.355.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31E3-3187

ACCUMULATOR,15 BAR / 120 BAR / 0.32 L

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

3

P930-042018

HYDRAULIC HOSE

1шт.

4

P910-062019

HYDRAULIC HOSE

1шт.

5

P920-042021

HYDRAULIC HOSE

1шт.

6

P930-042013

HYDRAULIC HOSE

1шт.

7

P930-042033

HYDRAULIC HOSE

1шт.

8

P930-042036

HYDRAULIC HOSE

1шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

8

P930-042028

HYDRAULIC HOSE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

9

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

11

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

12

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

2шт.

13

31N6-24200

HYD CONNECTOR

1шт.

14

S621-011001

O-RING,9/16 - 18 UNF

8шт.

15

S621-012001

O-RING

2шт.

16

S631-011004

O-RING,PF 1/4

6шт.

17

S631-014004

O-RING

1шт.

18

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

1шт.
