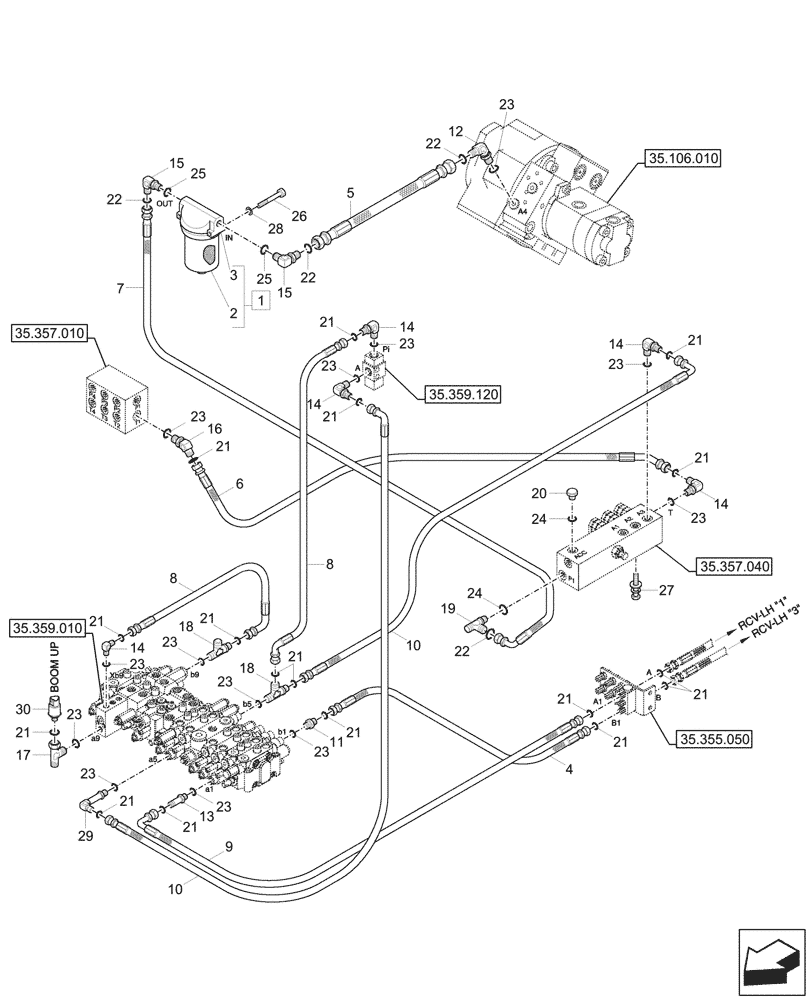

Запчасти Case CX57C (35.357.020) - VAR - 747076, 747077 - PILOT CONTROLS, SOLENOID VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

31MH-20310

FILTER

Filter, ASSY, Inc 2, 3

1шт.

2

31MH-20320

HYDRAULIC OIL FILTER

Element

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

X400-042007

HYDRAULIC HOSE

1шт.

5

X400-062009

HYDRAULIC HOSE

1шт.

6

P920-042023

HYDRAULIC HOSE

1шт.

7

P920-062013

HYDRAULIC HOSE

1шт.

8

P930-042009

HYDRAULIC HOSE

2шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

8

P930-042011

HYDRAULIC HOSE

2шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

9

P930-042016

HYDRAULIC HOSE

1шт.

10

P930-042022

HYDRAULIC HOSE

2шт.

11

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

12

X520-110011

90 ELBOW

1шт.

13

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

14

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

15

X520-110014

ELBOW,PF 1/2 x 11/16 - 16 UNF

2шт.

16

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

17

31N4-22170

TEE

1шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

17

31M8-20210

TEE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

18

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

2шт.

19

X820-065251

TEE

1шт.

20

P220-110103

PLUG,G 3/8

1шт.

21

S621-011001

O-RING,9/16 - 18 UNF

17шт.

22

S621-012001

O-RING

4шт.

23

S631-011004

O-RING,PF 1/4

12шт.

24

S631-014004

O-RING

2шт.

25

S631-018004

O-RING

2шт.

26

S015-060606

BOLT

2шт.

27

S037-102526

BOLT,M10 x 1.5 x 25mm

5шт.

28

S411-060006

WASHER,6mm ID

2шт.

29

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

30

31Q4-40830

SENSOR

Pressure, Boom Up

1шт.
