/ / / / / / / / (35.356.060) - VAR - 747076, 747077, 747453 - PILOT CONTROLS, FOOT CONTROL VALVE, LINES

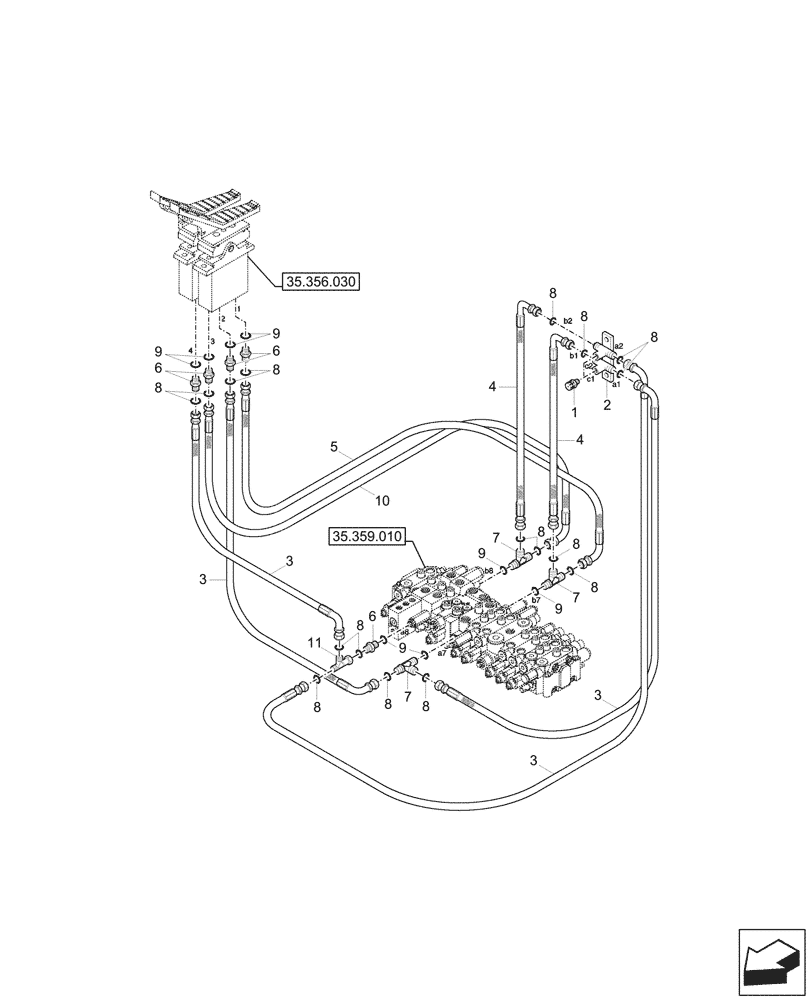

Запчасти Case CX57C (35.356.060) - VAR - 747076, 747077, 747453 - PILOT CONTROLS, FOOT CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.356.030
1
4
8
8
8
8
7
8
10
3
3
6
4
8
9
9
9
6
8
8
11
2
9
8
3
3
6
8
5
8
9
8
7
7
35.359.010
1
31E5-40540
SWITCH
Pressure
2шт.
2
31MH-20360
HYDRAULIC VALVE
Shuttle
1шт.
3
P930-042007
HYDRAULIC HOSE
4шт.
4
P930-042024
HYDRAULIC HOSE
2шт.
5
P930-042026
HYDRAULIC HOSE
1шт.
6
X500-110001
HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF
5шт.
7
X820-045151
TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF
3шт.
8
S621-011001
O-RING,9/16 - 18 UNF
17шт.
9
S631-011004
O-RING,PF 1/4
8шт.
10
P930-042030
HYDRAULIC HOSE
1шт.
11
X840-515151
TEE,9/16 - 18 UNF
Swivel
1шт.
