(35.356.050) - VAR - 747076, 747077, 747994 - PILOT CONTROLS, FOOT CONTROL VALVE, LINES

Запчасти Case CX57C (35.356.050) - VAR - 747076, 747077, 747994 - PILOT CONTROLS, FOOT CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

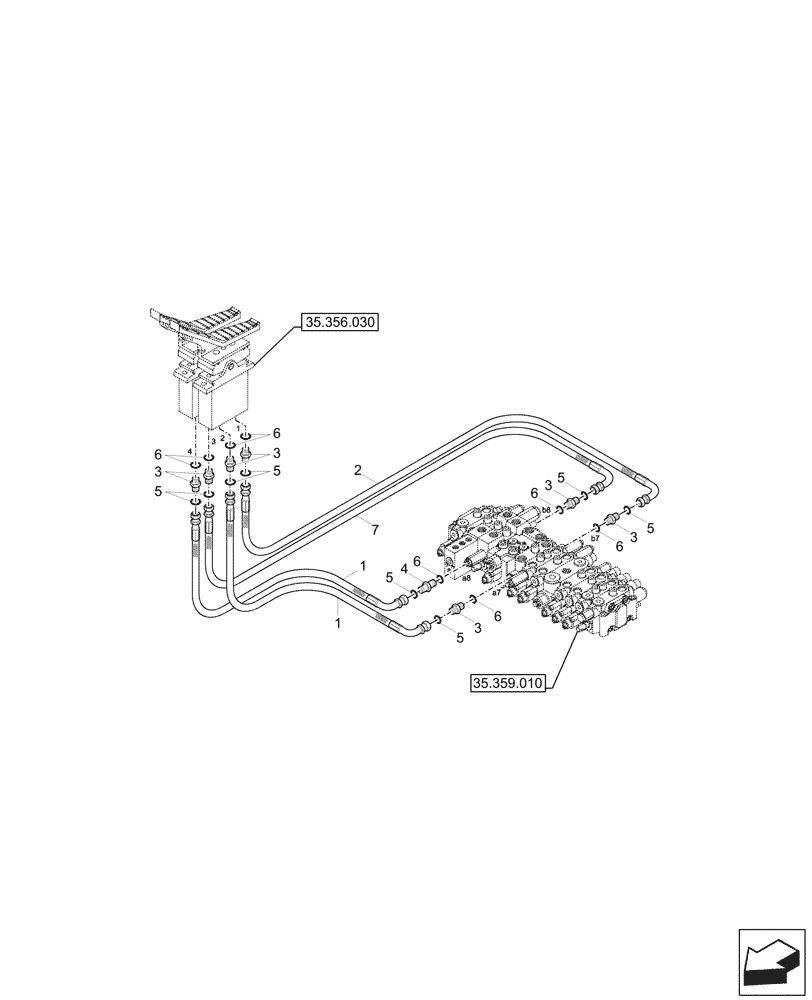

Схема запчастей Case CX57C - (35.356.050) - VAR - 747076, 747077, 747994 - PILOT CONTROLS, FOOT CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.356.030
5
5
3
3
1
4
3
2
6
5
6
5
6
6
3
5
6
7
3
1
6
5
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P930-042007

HYDRAULIC HOSE

2шт.

2

P930-042026

HYDRAULIC HOSE

1шт.

3

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

7шт.

4

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

5

S621-011001

O-RING,9/16 - 18 UNF

8шт.

6

S631-011004

O-RING,PF 1/4

8шт.

7

P930-042030

HYDRAULIC HOSE

1шт.
