Запчасти Case CX57C (35.355.060) - PILOT CONTROLS, CONTROL PATTERN SELECTION, VALVE, LINES (35) - HYDRAULIC SYSTEMS

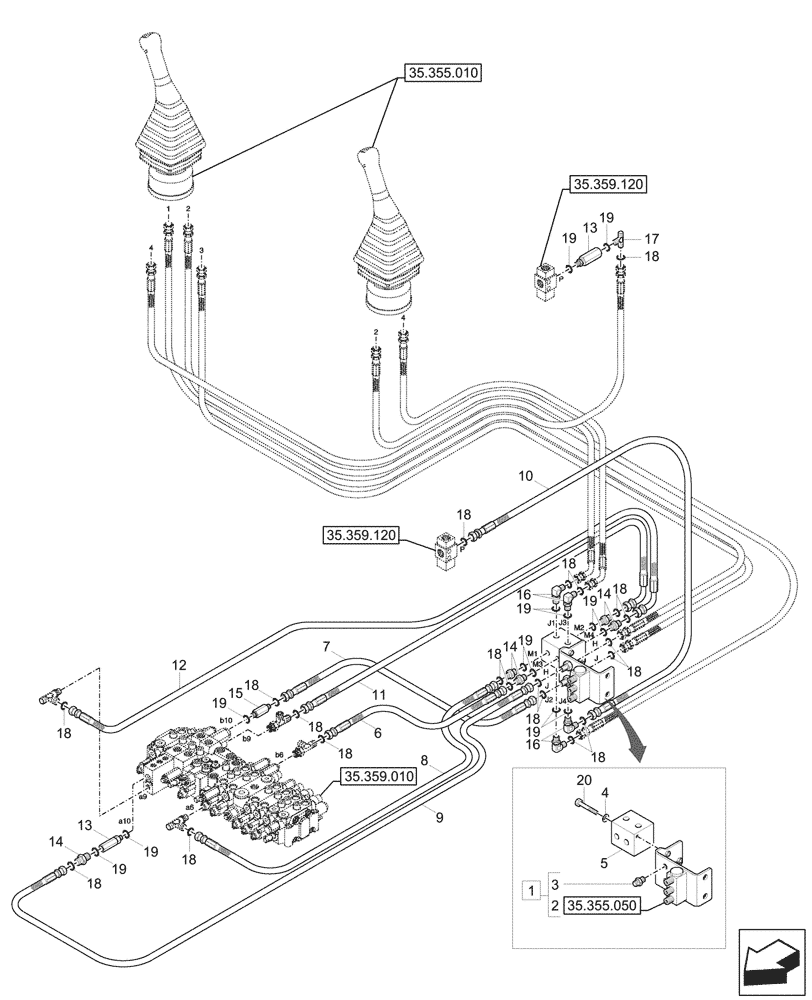

Схема запчастей Case CX57C - (35.355.060) - PILOT CONTROLS, CONTROL PATTERN SELECTION, VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
18
11
18
20
18
18
3
10
19
8
19
19
19
6
18
19
5
13
18
7
14
16
13
17
19
18
18
18
2
16
19
19
9
15
14
18
19
18
4
18
12
1
14
18
18
35.359.120
35.359.120
35.355.050
35.355.010

Артикул

Название

Примечание

Количество

1

31M8-21060

TERMINAL

ASSY, Incl 2, 3

1шт.

Pattern Change, Var. 747068

1шт.

2

31N6-25030

BRACKET

Shuttle, 5 Port, ASSY

1шт.

3

X540-120001

HYD CONNECTOR

2шт.

4

S411-080006

WASHER

2шт.

Pattern Change, Var. 747068

1шт.

5

31N6-22050

VALVE,PF 1/4

Selector

1шт.

Pattern Change, Var. 747068

1шт.

6

P910-042008

HYDRAULIC HOSE

1шт.

7

P910-042013

HYDRAULIC HOSE

1шт.

8

P910-042020

HYDRAULIC HOSE

1шт.

9

P930-042028

HYDRAULIC HOSE

1шт.

10

P930-042008

HOSE

1шт.

Pattern Change, Var. 747068

1шт.

11

P930-042012

HOSE

1шт.

12

P930-042026

HYDRAULIC HOSE

1шт.

Pattern Change, Var. 747068

1шт.

13

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

2шт.

14

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

5шт.

Pattern Change, Var. 747068

1шт.

15

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

16

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

4шт.

Pattern Change, Var. 747068

1шт.

17

X810-045151

TEE

1шт.

18

S621-011001

O-RING,9/16 - 18 UNF

20шт.

19

S631-011004

O-RING,PF 1/4

13шт.

Pattern Change, Var. 747068

1шт.

20

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

Pattern Change, Var. 747068

1шт.

Выбрано товаров: 29
