Запчасти Case CX57C (35.355.050) - PILOT CONTROLS, SELECTOR, VALVE, LINES (35) - HYDRAULIC SYSTEMS

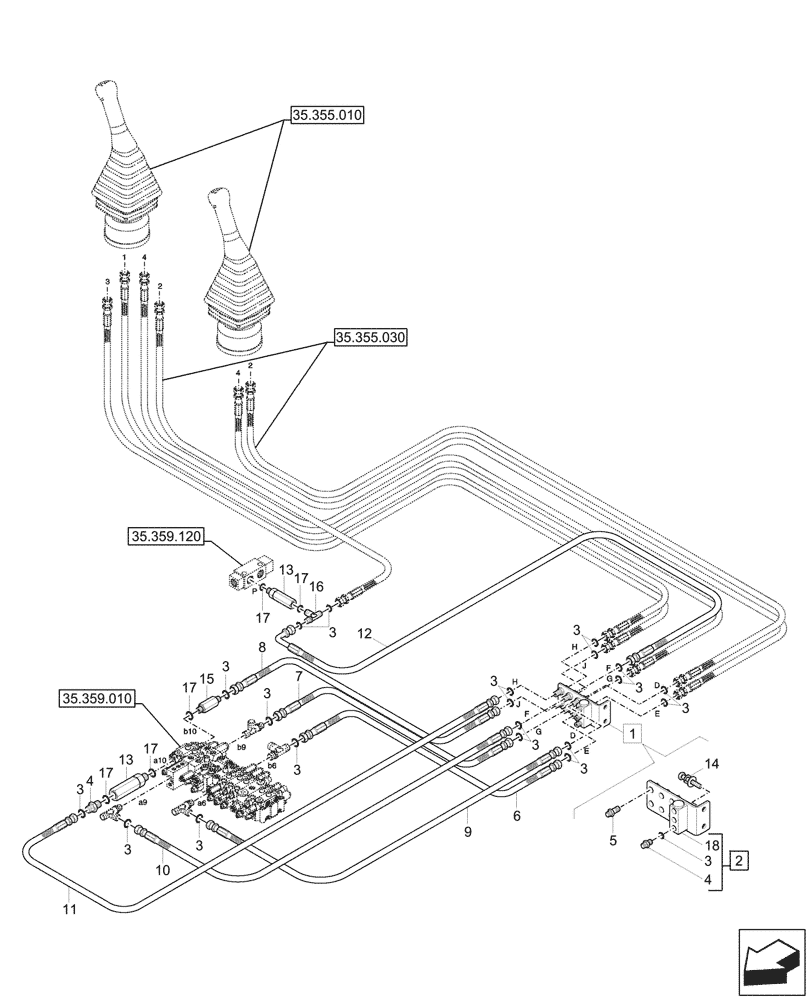

Схема запчастей Case CX57C - (35.355.050) - PILOT CONTROLS, SELECTOR, VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
4
14
5
3
15
3
13
3
3
8
6
13
3
4
10
3
17
3
9
3
3
1
3
17
7
17
3
16
17
2
3
3
11
17
12
18
3
35.359.120
35.355.010
35.355.030

Артикул

Название

Примечание

Количество

1

31M8-21011

TERMINAL

ASSY, Incl 2, 5

1шт.

Without Pattern Change, Var. 747069

1шт.

2

31N6-25030

BRACKET

Shuttle, 5 Port, ASSY, Incl 3 (Qty 3), 4 (Qty 3), 18

1шт.

3

S621-011001

O-RING,9/16 - 18 UNF

23шт.

4

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

5

X540-120001

HYD CONNECTOR

6шт.

6

P910-042008

HYDRAULIC HOSE

1шт.

7

P910-042012

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 747069

1шт.

8

P910-042013

HYDRAULIC HOSE

1шт.

9

P910-042020

HYDRAULIC HOSE

1шт.

10

P910-042024

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 747069

1шт.

11

P930-042028

HYDRAULIC HOSE

1шт.

12

P930-042012

HOSE

1шт.

13

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

2шт.

14

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

15

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

Without Pattern Change, Var. 747069

1шт.

16

X810-045151

TEE

1шт.

17

S631-011004

O-RING,PF 1/4

5шт.

Without Pattern Change, Var. 747069

1шт.

18

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.

Выбрано товаров: 23
