(35.355.040) - PILOT CONTROLS, DOZER, LINES

Запчасти Case CX57C (35.355.040) - PILOT CONTROLS, DOZER, LINES (35) - HYDRAULIC SYSTEMS

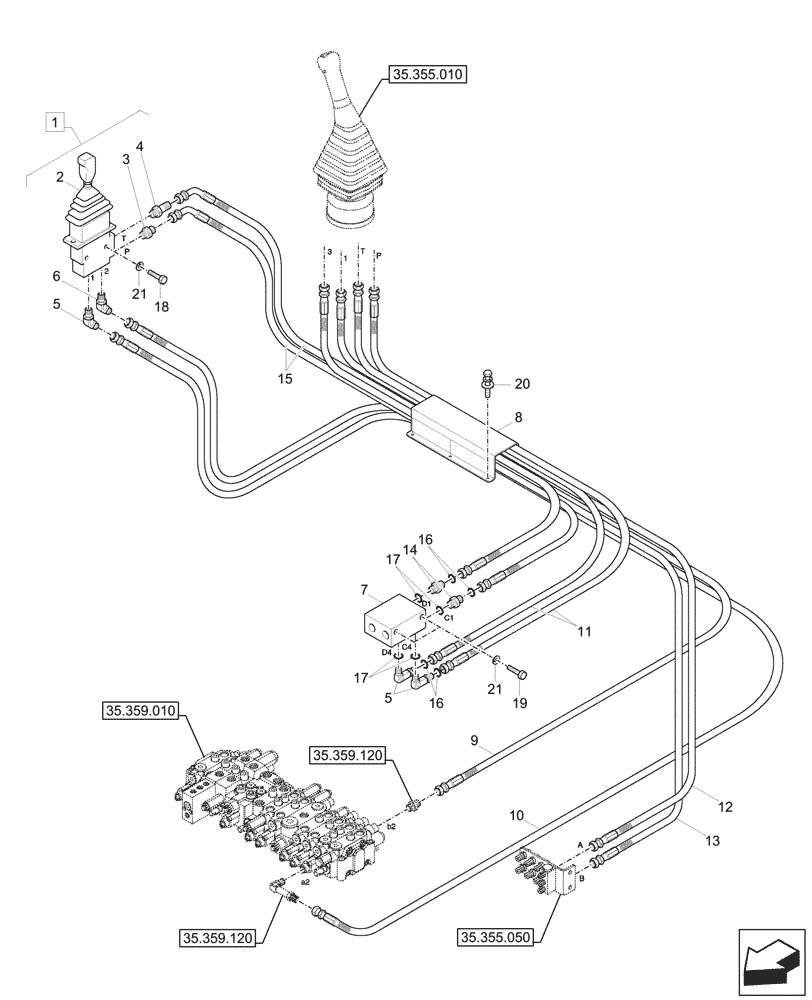

Схема запчастей Case CX57C - (35.355.040) - PILOT CONTROLS, DOZER, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
15
6
17
5
13
8
1
17
14
5
10
11
7
21
20
16
12
3
21
16
18
4
9
19
2
35.359.120
35.359.120
35.355.050
35.355.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M9-20090

LEVER

Dozer Blade, ASSY, Incl 2 - 4, 5 (Qty 1), 6

1шт.

2

31M8-20080

LEVER

1шт.

3

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

4

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

5

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

6

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

7

31MH-20112

BLOCK

1шт.

8

31M9-20110

COVER

1шт.

9

P910-042038

HYDRAULIC HOSE

1шт.

10

P910-042048

HYDRAULIC HOSE

1шт.

11

P910-042020

HYDRAULIC HOSE

2шт.

12

P910-042026

HYDRAULIC HOSE

1шт.

13

P910-042027

HYDRAULIC HOSE

1шт.

14

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

15

P930-042023

HYDRAULIC HOSE

2шт.

16

S621-011001

O-RING,9/16 - 18 UNF

4шт.

17

S631-011004

O-RING,PF 1/4

4шт.

18

S015-080356

BOLT

2шт.

19

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

20

S035-081526

BOLT,M8 x 1.25 x 15mm

3шт.

21

S411-080006

WASHER

4шт.
