(35.355.030) - PILOT CONTROLS, JOYSTICK, LINES

Запчасти Case CX57C (35.355.030) - PILOT CONTROLS, JOYSTICK, LINES (35) - HYDRAULIC SYSTEMS

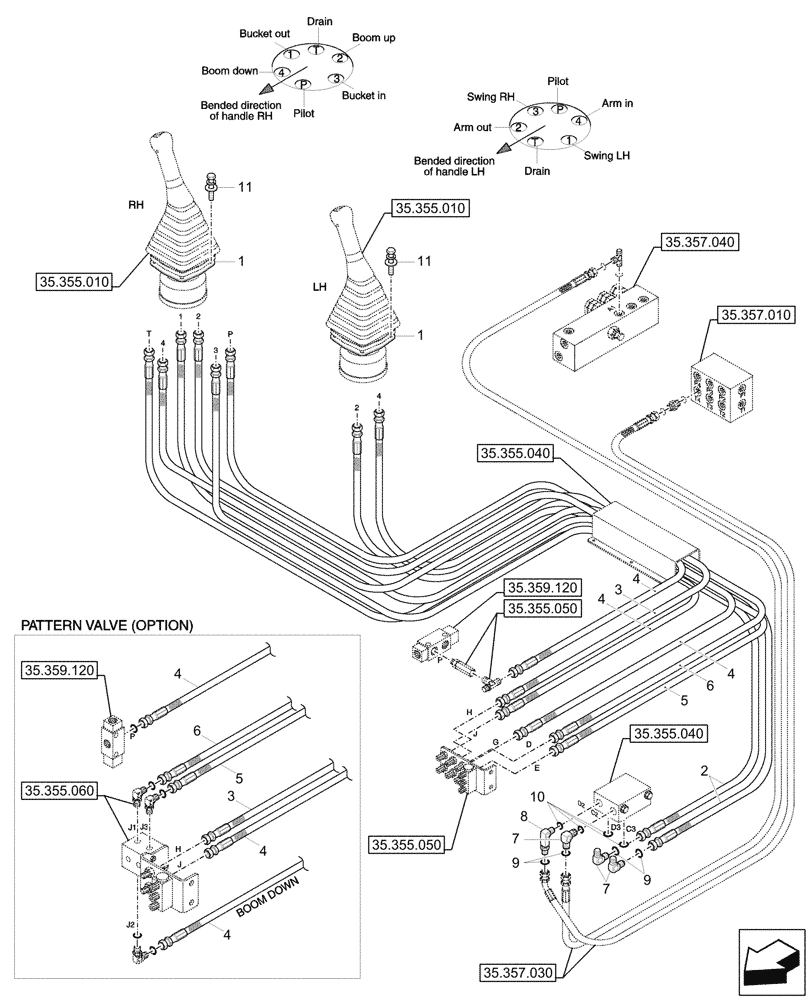

Схема запчастей Case CX57C - (35.355.030) - PILOT CONTROLS, JOYSTICK, LINES (35) - HYDRAULIC SYSTEMS
35.355.040
6
11
8
9
4
6
7
11
5
1
2
4
4
4
4
3
1
4
10
3
7
5
9
35.357.040
35.359.120
35.359.120
35.355.050
35.355.050
35.355.010
35.355.010
35.355.060
35.357.010
35.357.030
35.355.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M6-51061

SHIM

3.2mm Thk

2шт.

2

P910-042029

HYDRAULIC HOSE

2шт.

3

P910-042037

HYDRAULIC HOSE

1шт.

4

P910-042038

HYDRAULIC HOSE

3шт.

5

P910-042026

HYDRAULIC HOSE

1шт.

6

P910-042027

HYDRAULIC HOSE

1шт.

7

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

8

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

9

S621-011001

O-RING,9/16 - 18 UNF

4шт.

10

S631-011004

O-RING,PF 1/4

4шт.

11

S035-063046

BOLT,M6 x 1 x 30mm

8шт.

Выбрано товаров: 11
