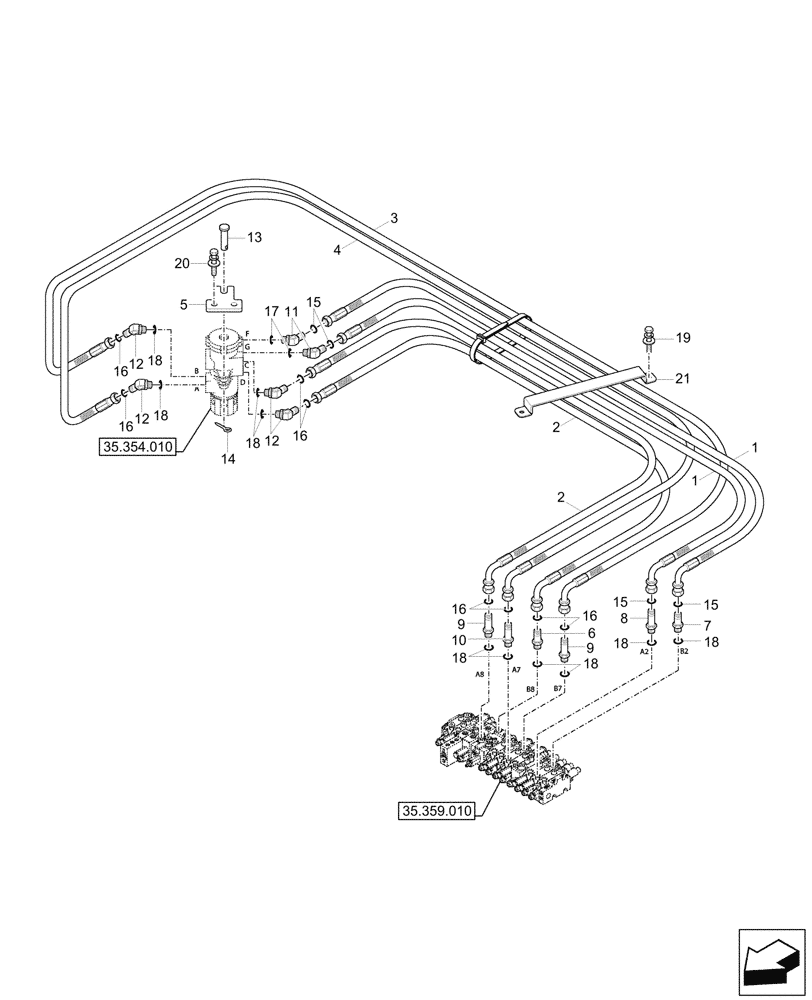

Запчасти Case CX57C (35.354.050) - VAR - 747076 - HYDRAULIC SWIVEL, LINES (35) - HYDRAULIC SYSTEMS

1

P930-065030

HYDRAULIC HOSE

2шт.

2

P930-085021

HYDRAULIC HOSE

2шт.

3

31M9-11720

HYDRAULIC HOSE

1шт.

4

31M9-11730

HYDRAULIC HOSE

1шт.

5

31M8-10362CG

BRACKET

Turning Joint

1шт.

6

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

1шт.

7

X500-110015

HYD CONNECTOR

1шт.

8

X511-108524

HYD CONNECTOR

Long

1шт.

9

X511-108533

HYD CONNECTOR

Long

2шт.

10

X511-108535

HYD CONNECTOR

Long

1шт.

11

X530-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

2шт.

12

X530-110003

ELBOW

4шт.

13

S491-160702

PIN

1шт.

14

S501-150001

PIN

1шт.

15

S621-012001

O-RING

4шт.

16

S621-014001

O-RING

8шт.

17

S631-014004

O-RING

2шт.

18

S631-018004

O-RING

10шт.

19

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

20

S037-123526

BOLT

2шт.

21

31M8-10372

CLAMP

1шт.
