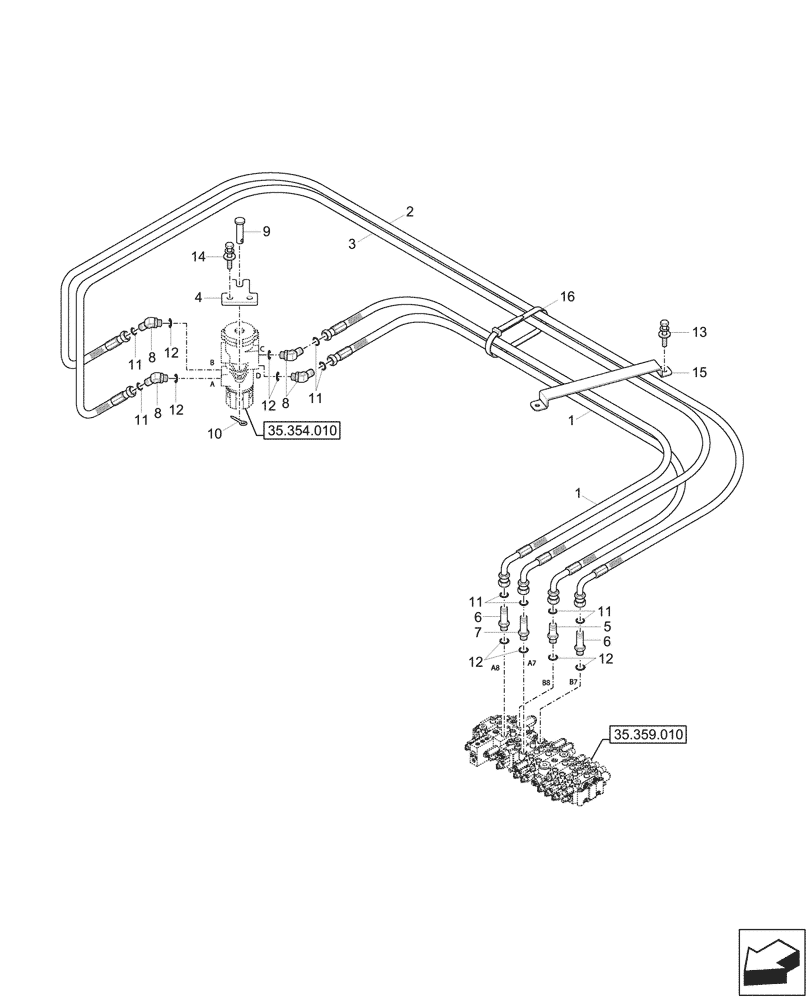

Запчасти Case CX57C (35.354.030) - VAR - 747077 - HYDRAULIC SWIVEL, LINES (35) - HYDRAULIC SYSTEMS

1

P930-085021

HYDRAULIC HOSE

2шт.

2

31M9-11720

HYDRAULIC HOSE

1шт.

3

31M9-11730

HYDRAULIC HOSE

1шт.

4

31M8-10362CG

BRACKET

Turning Joint

1шт.

5

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

1шт.

6

X511-108533

HYD CONNECTOR

Long

2шт.

7

X511-108535

HYD CONNECTOR

Long

1шт.

8

X530-110003

ELBOW

4шт.

9

S491-160702

PIN

Clevis

1шт.

10

S501-150001

PIN

1шт.

11

S621-014001

O-RING

8шт.

12

S631-018004

O-RING

8шт.

13

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

14

S037-123526

BOLT

2шт.

15

31M8-10372

CLAMP

1шт.

16

S551-050203

CLAMP

5шт.
