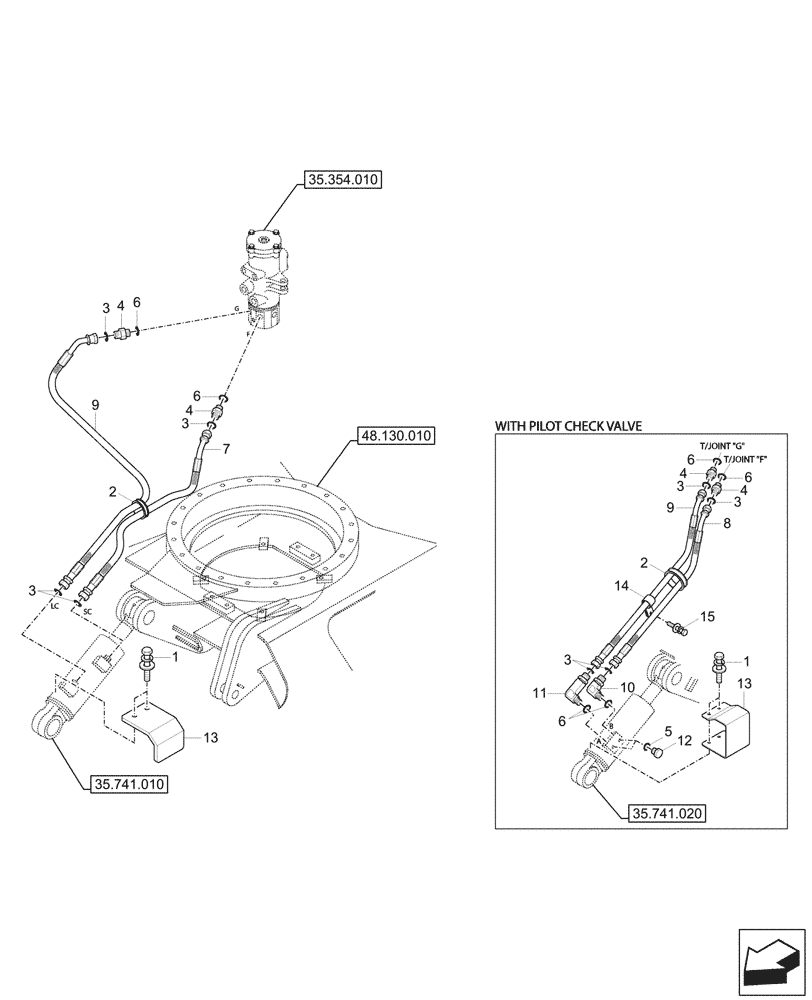

Запчасти Case CX57C (35.354.020) - HYDRAULIC SWIVEL, LINES (35) - HYDRAULIC SYSTEMS

1

S037-122526

BOLT

2шт.

Without Blade Safety Valve, Var. 747067

1шт.

1

S037-122526

BOLT

4шт.

Blade Safety Valve, Var. 747066

1шт.

2

S760-070806

GROMMET

1шт.

3

S621-012001

O-RING

4шт.

4

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

2шт.

5

S631-011004

O-RING,PF 1/4

2шт.

Blade Safety Valve, Var. 747066

1шт.

6

S631-014004

O-RING

2шт.

Without Blade Safety Valve, Var. 747067

1шт.

6

S631-014004

O-RING

4шт.

Blade Safety Valve, Var. 747066

1шт.

7

P923-065019

HYDRAULIC HOSE

1шт.

Without Blade Safety Valve, Var. 747067

1шт.

8

P923-065023

HYDRAULIC HOSE

1шт.

Blade Safety Valve, Var. 747066

1шт.

9

P923-065025

HYDRAULIC HOSE

1шт.

10

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

1шт.

Blade Safety Valve, Var. 747066

1шт.

11

31N1-40130

90 ELBOW

1шт.

Blade Safety Valve, Var. 747066

1шт.

12

P220-110102

PLUG

2шт.

Blade Safety Valve, Var. 747066

1шт.

13

31M8-40120CG

COVER

1шт.

Without Blade Safety Valve, Var. 747067

1шт.

13

31M9-40130CG

COVER

1шт.

Blade Safety Valve, Var. 747066

1шт.

14

31HA-10160

CLAMP

1шт.

Blade Safety Valve, Var. 747066

1шт.

15

S035-082026

BOLT,M8 x 1.25 x 20mm

1шт.

Blade Safety Valve, Var. 747066

1шт.
