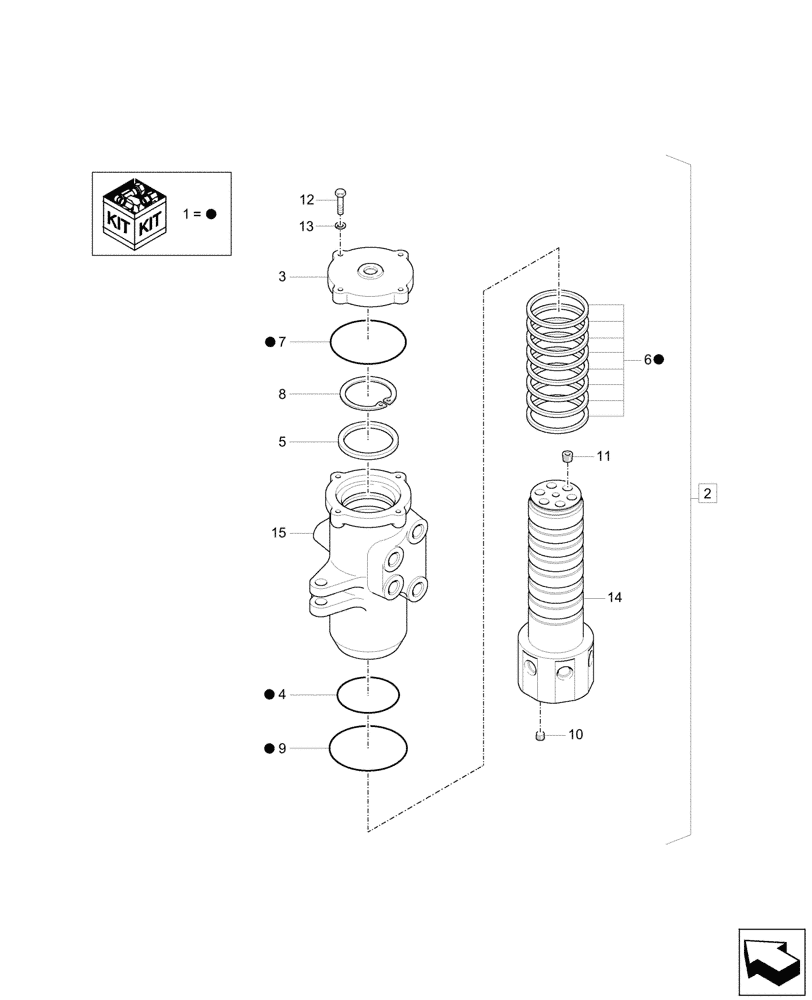

Запчасти Case CX57C (35.354.010) - HYDRAULIC SWIVEL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31M9-51530

SEAL KIT

ASSY, Incl 4, 6, 7, 9

1шт.

2

31M9-51000CG

JOINT

ASSY, Incl 3 - 14

1шт.

3

31M8-51520CG

COVER

1шт.

4

S631-080004

O-RING

1шт.

5

31M6-51530

RING

1шт.

6

31M6-51540

SEAL KIT

Slipper

8шт.

7

S632-105004

O-RING

1шт.

8

S601-075004

RING

1шт.

9

S631-095001

O-RING

1шт.

10

P220-430201

PLUG

1шт.

11

P220-430203

PLUG

6шт.

12

S017-080356

BOLT

4шт.

13

S411-080006

WASHER

4шт.

14

31M8-51500CG

SHAFT

1шт.

15

31M8-51510CG

ROTOR

1шт.
