Запчасти Case CX57C (35.300.030) - VAR - 747076 - HYDRAULIC OIL RESERVOIR, LINES (35) - HYDRAULIC SYSTEMS

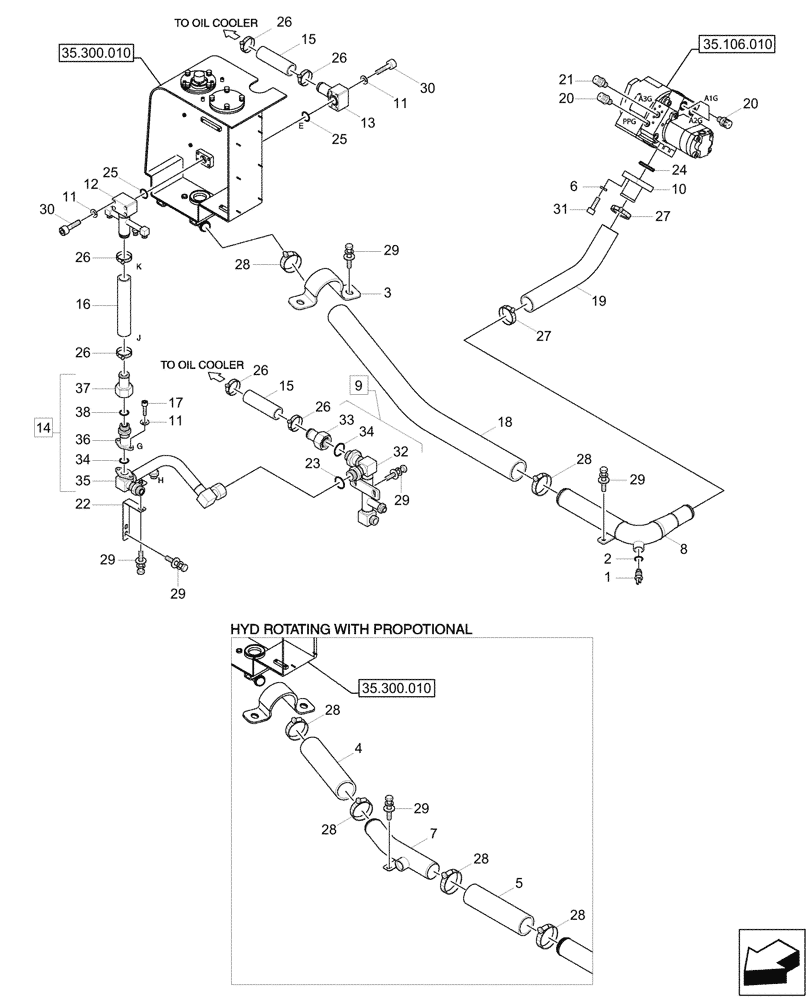

Схема запчастей Case CX57C - (35.300.030) - VAR - 747076 - HYDRAULIC OIL RESERVOIR, LINES (35) - HYDRAULIC SYSTEMS
35.106.010
16
28
17
26
9
29
29
30
14
28
19
28
25
4
26
26
28
11
2
10
1
31
11
27
20
36
38
25
29
29
35
26
29
34
12
6
15
26
20
37
28
11
8
32
15
26
5
30
34
24
23
28
33
3
22
13
27
29
7
18
21
35.300.010
35.300.010

Артикул

Название

Примечание

Количество

1

21EN-40100

TEMPERATURE SENDER

1шт.

2

21EA-50260

PACKING

1шт.

3

31M9-10910

CLAMP

1шт.

Without 2nd Auxiliary Circuit Proportional, Var. 747999

1шт.

4

P760-082030

HOSE

Rubber

2шт.

2nd Auxiliary Circuit Proportional, Var. 747053

1шт.

5

P760-082032

HOSE

Rubber

1шт.

2nd Auxiliary Circuit Proportional, Var. 747053

1шт.

6

S411-120006

WASHER

4шт.

7

31MN-10230CG

PIPE

Suction

1шт.

2nd Auxiliary Circuit Proportional, Var. 747053

1шт.

8

31M9-19240CG

PIPE

Suction

1шт.

9

31M9-12231CG

PIPE

Return, ASSY, Incl 32 - 34 (Qty 1)

1шт.

Without 2nd Auxiliary Circuit Proportional, Var. 747999

1шт.

9

31MN-12230CG

PIPE

Return, ASSY, Incl 32 - 34 (Qty 1)

1шт.

2nd Auxiliary Circuit Proportional, Var. 747053

1шт.

10

31M9-10760CG

PIPE

1шт.

11

S411-100006

WASHER

10шт.

12

31M9-10280CG

PIPE

1шт.

13

31M8-10460CG

PIPE

Return

1шт.

14

32M9-12210CG

PIPE

Return, ASSY, Incl 11 (Qty 2), 17, 34 (Qty 1), 35 - 38

1шт.

15

P760-052015

HOSE

Rubber

2шт.

16

P760-052016

HOSE

Rubber

1шт.

17

S109-100406

BOLT

2шт.

18

31M9-10230

HYDRAULIC HOSE

Suction

1шт.

Without 2nd Auxiliary Circuit Proportional, Var. 747999

1шт.

19

31M8-10310

HYDRAULIC HOSE

Suction

1шт.

20

31EK-11130

SCREW,M16

3шт.

21

31M6-50860

BOLT

1шт.

22

31M8-10661CG

BRACKET

1шт.

23

S621-021001

O-RING

1шт.

24

S631-045001

O-RING

1шт.

25

S632-035001

O-RING

2шт.

26

31Q6-10810

CLAMP

6шт.

27

31Q6-10830

CLAMP

2шт.

28

31Q6-10840

CLAMP

Qty 4 For Var. 747053

2шт.

29

S037-102526

BOLT,M10 x 1.5 x 25mm

9шт.

30

S109-100606

BOLT

8шт.

31

S109-120356

BOLT

4шт.

32

31M9-10262CG

PIPE

1шт.

Without 2nd Auxiliary Circuit Proportional, Var. 747999

1шт.

32

31MN-12240CG

PIPE

1шт.

2nd Auxiliary Circuit Proportional, Var. 747053

1шт.

33

31M5-52121

VALVE

Check

2шт.

34

S631-029004

O-RING

3шт.

35

32M9-11470CG

PIPE

1шт.

36

31M9-10780CG

FLANGE

1шт.

37

31M5-52111

VALVE

Check

1шт.

38

Y171-024004

O-RING

1шт.

Выбрано товаров: 49
