/ / / / / / / / (10.400.010) - RADIATOR, COMPONENTS

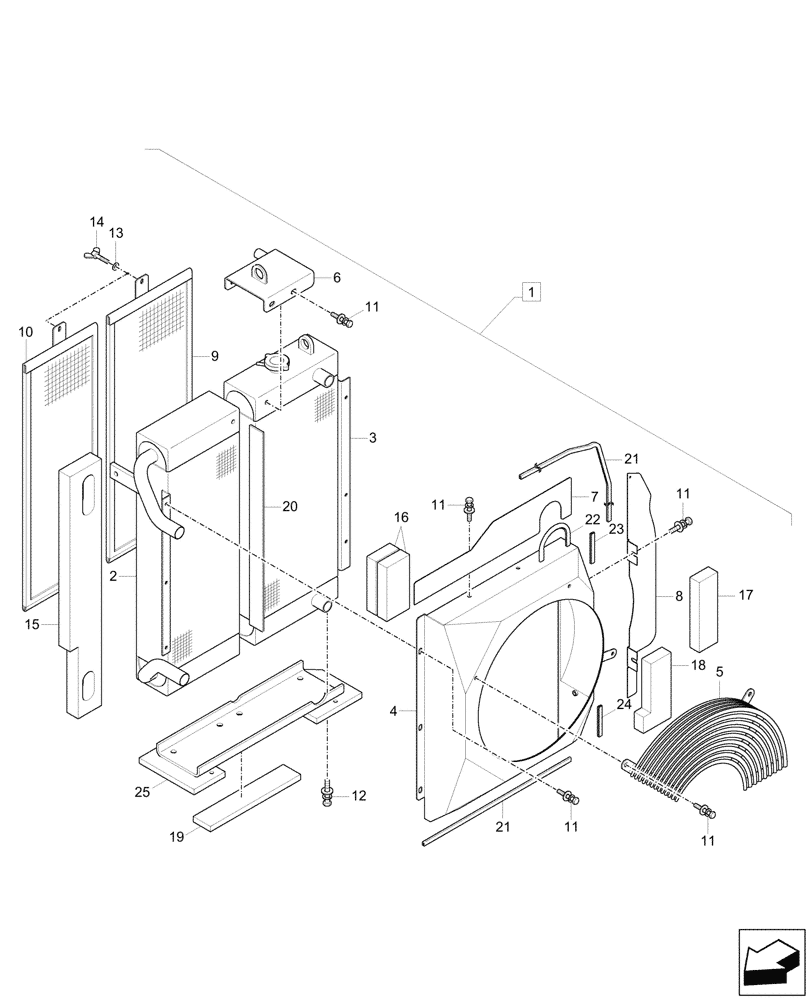

Запчасти Case CX57C (10.400.010) - RADIATOR, COMPONENTS (10) - ENGINE
1
11
18
15
25
6
17
2
11
10
19
23
24
11
5
12
9
21
14
7
11
20
16
4
8
11
22
3
13
21
1
11M9-40010
RADIATOR
ASSY, Incl 2 - 25
1шт.
2
11M9-40040
COOLER ASSY.
Oil
1шт.
3
11M9-40030
RADIATOR
Water
1шт.
4
11M9-40050
SHROUD
1шт.
5
11M9-40060
GUARD
1шт.
6
11M9-40070
SUPPORT
1шт.
7
11M9-40080
SIDE PANEL
1шт.
8
11M9-40090
SIDE PANEL
1шт.
9
11M9-40100
GRILLE
1шт.
10
11M9-40110
GRILLE
1шт.
11
S035-081526
BOLT,M8 x 1.25 x 15mm
16шт.
12
S037-102026
BOLT,M10 x 1.5 x 20mm
8шт.
13
S403-06200B
WASHER
2шт.
14
S091-060106
BOLT
2шт.
15
11M9-40120
SOFT TRIM
1шт.
16
11M9-40130
SOFT TRIM
2шт.
17
11M9-40140
SOFT TRIM
1шт.
18
11M9-40150
TRIM
1шт.
19
11M9-45131
TRIM
1шт.
20
11M9-40160
TRIM
2шт.
21
11M9-40170
STRIP
1шт.
22
11M9-40180
STRIP
1шт.
23
11M9-40190
STRIP
1шт.
24
11M9-40200
STRIP
1шт.
25
11M9-46030
SUPPORT
1шт.
