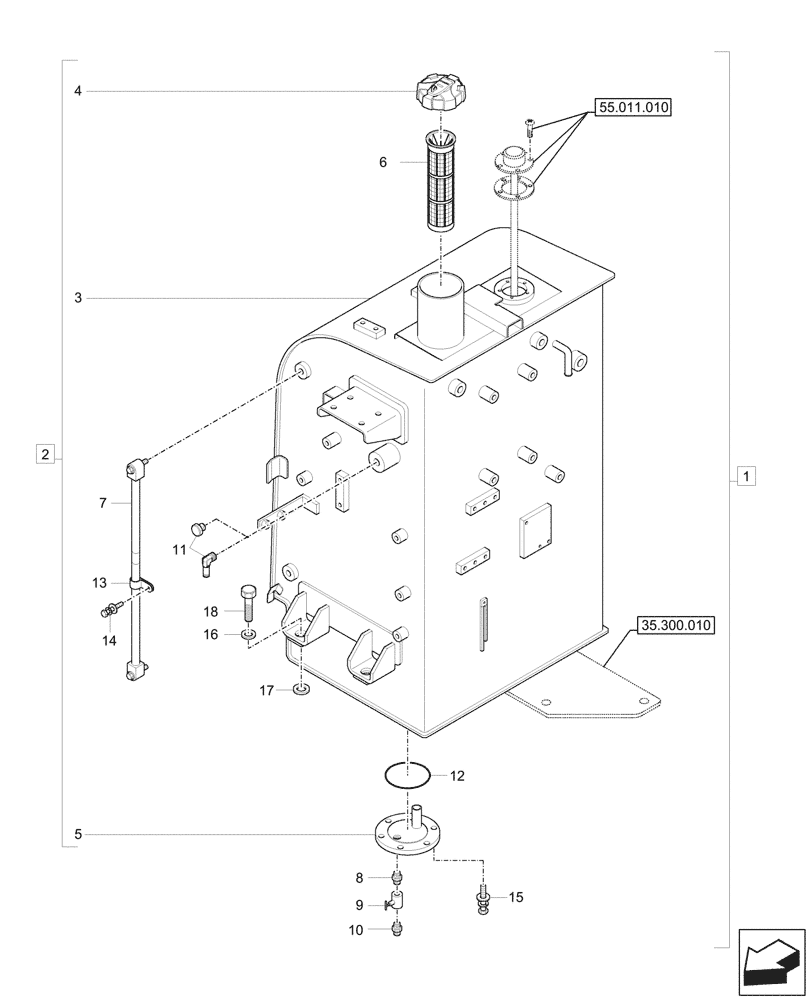

Запчасти Case CX57C (10.216.010) - FUEL TANK, COMPONENTS (10) - ENGINE

1

3KM9-07700

TANK

Hydraulic Oil and Fuel Tank, ASSY, Incl 2 - 15

1шт.

2

3LM9-03100

TANK

Fuel Tank, ASSY, Incl 3 - 5

1шт.

3

35M9-02010CA

FUEL TANK

1шт.

4

3LM9-02130

CAP

1шт.

5

35M9-02160CA

COVER

1шт.

6

31M9-02080

FILTER STRAINER

1шт.

7

33Q4-02060

FUEL GAUGE

1шт.

8

31E5-3049

FITTING

1шт.

9

E131-1006

VALVE

1шт.

10

P090-100404

HYD CONNECTOR

1шт.

11

P220-430103

PLUG

1шт.

Without Fuel Lift Pump, Var. 747091

1шт.

11

11M6-51190

ELBOW

1шт.

Fuel Lift Pump, Var. 747092

1шт.

12

S632-080001

O-RING

1шт.

13

S543-140002

CLAMP

1шт.

14

S035-081516

BOLT

1шт.

15

S035-082526

BOLT,M8 x 1.25 x 25mm

6шт.

16

S441-160006

WASHER

2шт.

17

41M5-51920

SHIM

1.0mm Thk

2шт.

18

S017-16040D

BOLT

2шт.
