Запчасти Case CX57C (95.100.010[01]) - BUCKET, ASSY, MECH / HYD COUPLER - NA ONLY (95) - CE ATTACHMENTS

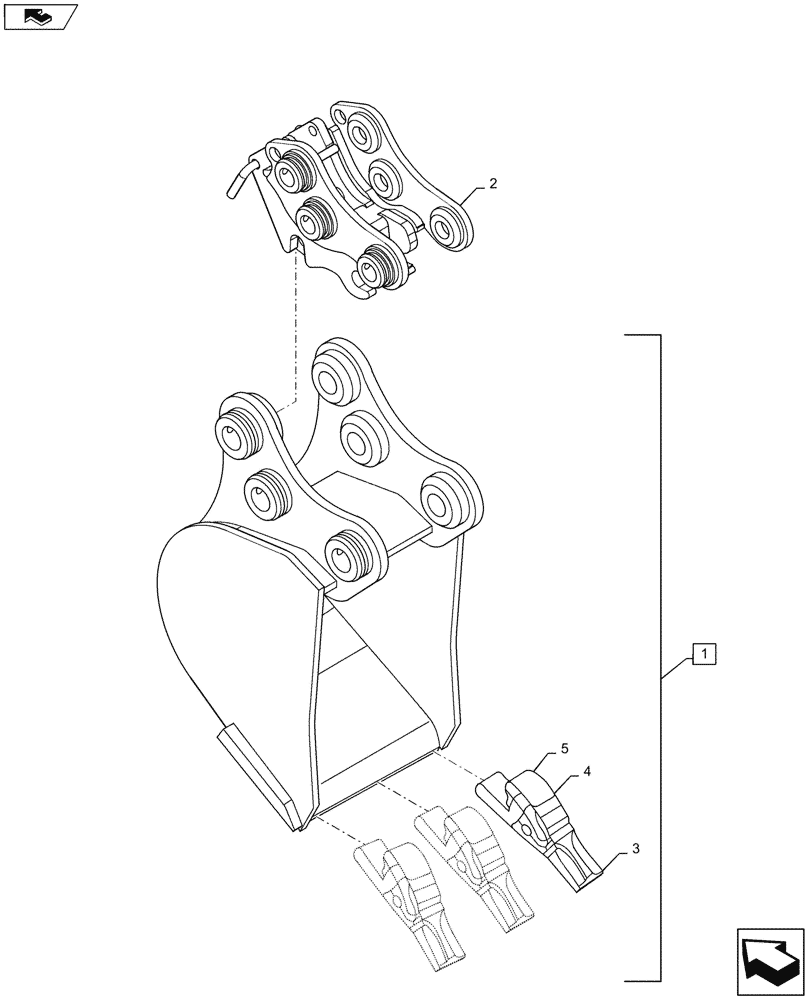

Схема запчастей Case CX57C - (95.100.010[01]) - BUCKET, ASSY, MECH / HYD COUPLER - NA ONLY (95) - CE ATTACHMENTS
5
2
4
1
3
home

Артикул

Название

Примечание

Количество

1

48057625

(Contact Ship Direct) Incl 3 - 5

BUCKET,1-Pos Pin-On, 12” 3 T

1шт.

1

48057626

(Contact Ship Direct) Incl 3 - 5

BUCKET,1-Pos Pin-On, 18” 4 T

1шт.

1

48057627

(Contact Ship Direct) Incl 3 - 5

BUCKET,1-Pos Pin-On, 24” 5 T

1шт.

1

48057628

(Contact Ship Direct) Incl 3 - 5

BUCKET,1-Pos Pin-On, 36” 6 T

1шт.

1

48057637

(Contact Ship Direct) Incl 3 - 5

BUCKET,1-Pos Pin-On, Cemetery 36” 6 T

1шт.

2

48057630

Mechanical Quick Hitch/Coupler (Contact Ship Direct) Incl Dead Pin Kit

QUICK-HITCH

1шт.

2

48058014

Hydraulic Quick Hitch/Coupler (Contact Ship Direct) Incl Dead Pin Kit

QUICK-HITCH

1шт.

2

48082917

Universal Mechanical Quick Hitch (Contact Ship Direct)

QUICK-HITCH

1шт.

2

48057631

Kit, Dead Pin (1 set Included with Coupler) (Contact Ship Direct)

PIN

1шт.

3

47444439

BUCKET TOOTH POINT

General Purpose (SF4SYL)

1шт.

3

47444440

BUCKET TOOTH POINT

Loader Style (SF4TYL)

1шт.

3

47444441

BUCKET TOOTH POINT

Tiger (SF4TV)

1шт.

3

47563444

BUCKET TOOTH POINT

Flare (SF4F)

1шт.

3

47606382

BUCKET TOOTH POINT

Heavy Penetrator (SF4HP)

1шт.

3

47606384

BUCKET TOOTH POINT

Twin Tiger (SF4UT)

1шт.

4

47444442

PIN

(SF4P)

1шт.

5

47444443

BUCKET TOOTH SHANK

(SF7016M4)

1шт.

Выбрано товаров: 17
