(90.160.010) - CAB, PILLAR, TRIM PANEL

Запчасти Case CX57C (90.160.010) - CAB, PILLAR, TRIM PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

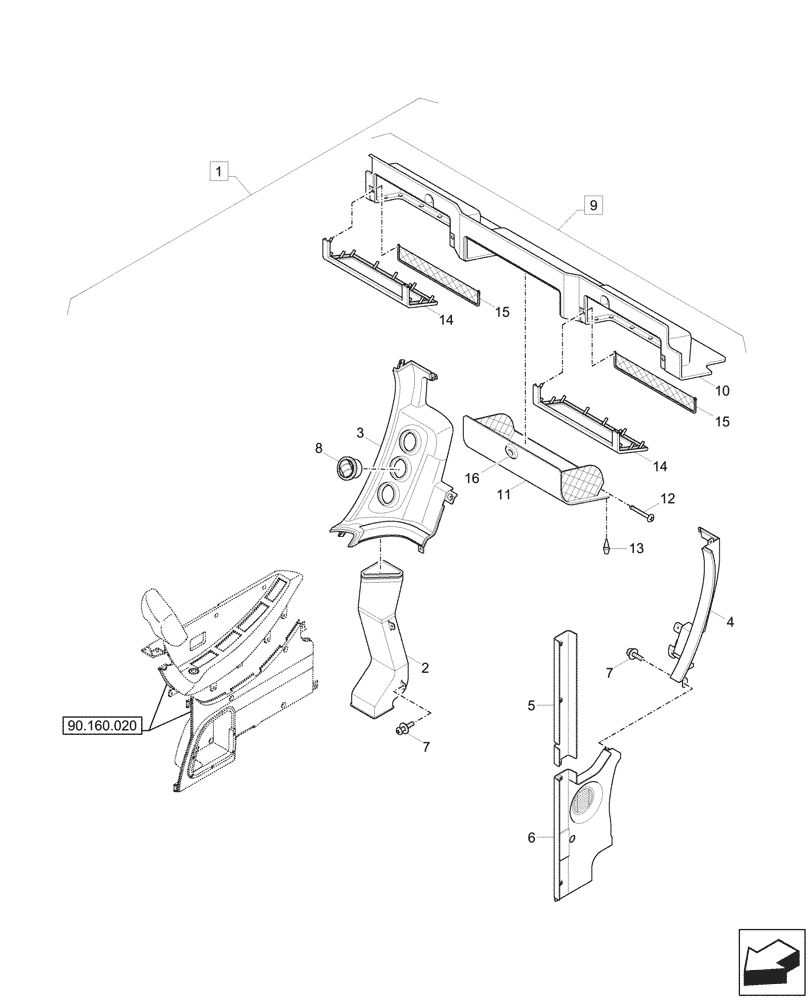

Схема запчастей Case CX57C - (90.160.010) - CAB, PILLAR, TRIM PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.020
9
7
15
1
14
3
11
7
6
5
4
8
2
13
10
15
14
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71M9-26100

CAB

Rear Panel, ASSY, Incl 2 - 16

1шт.

2

71M9-21160

DUCT

1шт.

3

71M9-25451

PILLAR

Pillar, Rear, RH

1шт.

4

71M9-21201

TRIM

Pillar, LH

1шт.

5

71M9-21221

TRIM

Center Pillar, LH

1шт.

6

71M9-21151

TRIM

Lower, LH

1шт.

7

S002-06015B

SCREW

1шт.

8

71Q6-22400

NOZZLE

5шт.

9

71M9-23411

TRIM

Rear, ASSY, Incl 10 - 16

1шт.

10

71M9-23421

TRIM

1шт.

11

71M9-23431

COVER

1шт.

12

71M9-23440

HINGE

2шт.

13

71M9-23450

DAMPER

3шт.

14

71M9-23460

COVER

2шт.

15

71M9-23830

NET

2шт.

16

71M9-25440

LOCK

1шт.
