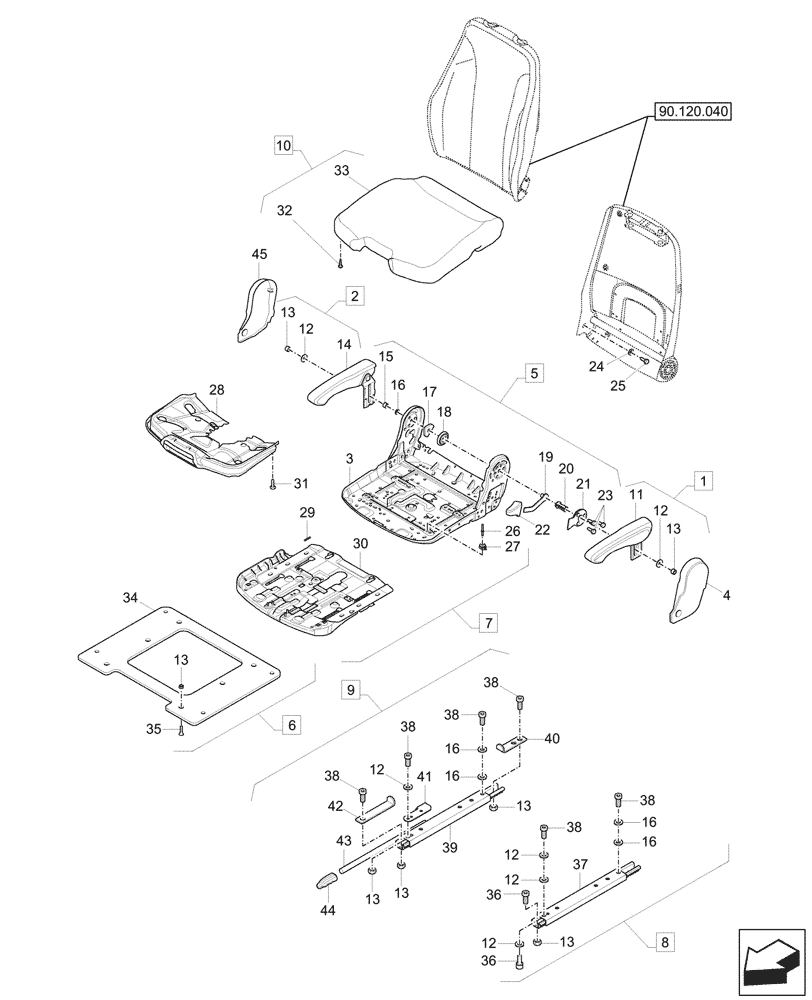

Запчасти Case CX57C (90.120.030) - DRIVER SEAT, CUSHION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
ZGBH-00242
ARMREST
LH, ASSY, Incl 11, 12 (Qty 1), 13 (Qty 1)
1шт.
2
ZGBH-00243
ARMREST
RH, ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14
1шт.
3
ZGBH-00110
PLATE
1шт.
4
NSS
NOT SOLD SEPARAT
Cover, LH
1шт.
5
ZGBH-00207
BACKREST
ASSY, Incl 15, 16 (Qty 1), 17 - 25
1шт.
6
ZGBH-00248
PLATE
ASSY, Incl 13 (Qty 6), 34, 35
1шт.
7
ZGBH-00205
SLIDER
ASSY, Incl 26 - 31
1шт.
8
ZGBH-00246
RACE
LH, ASSY, Incl 12 (Qty 4), 13 (Qty 4), 16 (Qty 2), 36, 37, 38 (Qty 2)
1шт.
9
ZGBH-00247
RACE
RH, ASSY, Incl 12 (Qty 3), 13 (Qty 4), 16 (Qty 2), 38 (Qty 4), 39 - 44
1шт.
10
ZGBH-00250
SEAT CUSHION
ASSY, Incl 32, 33
1шт.
11
NSS
NOT SOLD SEPARAT
Armrest, Incl in 1
1шт.
12
NSS
NOT SOLD SEPARAT
Washer
9шт.
13
NSS
NOT SOLD SEPARAT
Nut
16шт.
14
NSS
NOT SOLD SEPARAT
Armrest, Incl in 2
1шт.
15
NSS
NOT SOLD SEPARAT
Nut, Incl in 5
1шт.
16
NSS
NOT SOLD SEPARAT
Washer
5шт.
17
NSS
NOT SOLD SEPARAT
Holder Spring, Incl in 5
1шт.
18
NSS
NOT SOLD SEPARAT
Spring Leg, Incl in 5
1шт.
19
NSS
NOT SOLD SEPARAT
Lever, Incl in 5
1шт.
20
NSS
NOT SOLD SEPARAT
Screw, Incl in 5
1шт.
21
NSS
NOT SOLD SEPARAT
Plate, Incl in 5
1шт.
22
NSS
NOT SOLD SEPARAT
Handle, Incl in 5
1шт.
23
NSS
NOT SOLD SEPARAT
Screw, Incl in 5
3шт.
24
NSS
NOT SOLD SEPARAT
Washer, Incl in 5
1шт.
25
NSS
NOT SOLD SEPARAT
Screw, Incl in 5
1шт.
26
NSS
NOT SOLD SEPARAT
Rivet, Incl in 7
4шт.
27
NSS
NOT SOLD SEPARAT
Profile, Incl in 7
4шт.
28
NSS
NOT SOLD SEPARAT
Adjustement, Incl in 7
1шт.
29
NSS
NOT SOLD SEPARAT
Spring, Incl in 7
1шт.
30
NSS
NOT SOLD SEPARAT
Adjustement Seat, Incl in 7
1шт.
31
NSS
NOT SOLD SEPARAT
Screw, Incl in 7
4шт.
32
NSS
NOT SOLD SEPARAT
Screw, Incl in 10
4шт.
33
NSS
NOT SOLD SEPARAT
Cushion, Incl in 10
1шт.
34
NSS
NOT SOLD SEPARAT
Bottom Plate, Incl in 6
1шт.
35
NSS
NOT SOLD SEPARAT
Screw, Incl in 6
6шт.
36
NSS
NOT SOLD SEPARAT
Screw, Incl in 8
2шт.
37
NSS
NOT SOLD SEPARAT
Additional Rail, Incl in 8
1шт.
38
NSS
NOT SOLD SEPARAT
Screw
6шт.
39
NSS
NOT SOLD SEPARAT
Additional Rail, Incl in 9
1шт.
40
NSS
NOT SOLD SEPARAT
Stop, Icnl in 9
1шт.
41
NSS
NOT SOLD SEPARAT
Bracket, Incl in 9
1шт.
42
NSS
NOT SOLD SEPARAT
Angle, Incl in 9
1шт.
43
NSS
NOT SOLD SEPARAT
Handle, Incl in 9
1шт.
44
NSS
NOT SOLD SEPARAT
Knob, Incl in 9
1шт.
45
NSS
NOT SOLD SEPARAT
Cover, RH
1шт.
Выбрано товаров: 45
