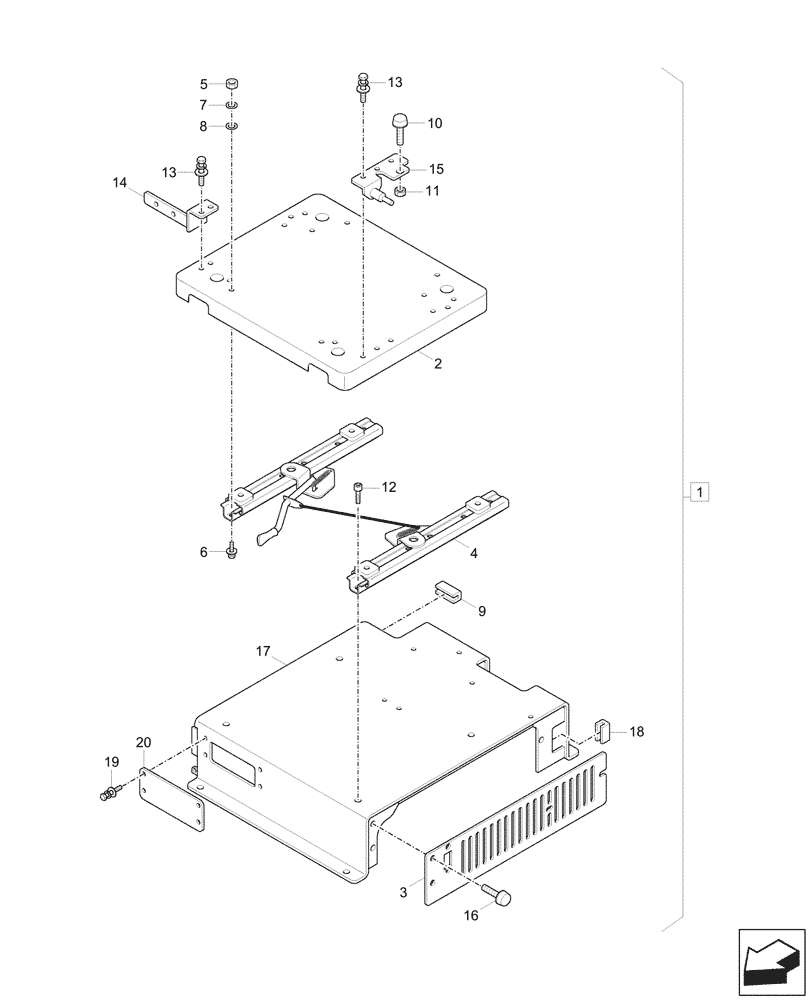

/ / / / / / / / (90.120.010) - DRIVER SEAT, BASE PLATE
Запчасти Case CX57C (90.120.010) - DRIVER SEAT, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
13
19
2
3
18
7
8
4
14
5
16
6
11
1
17
20
12
13
10
9
1
71M9-20127CG
DRIVER SEAT
ASSY, Incl 2 - 20
1шт.
2
71M9-20142CG
BASE PLATE
1шт.
3
71M9-20103CG
COVER
Inlet Filter
1шт.
4
72M9-22800
GUIDE
1шт.
5
S205-08100B
NUT
4шт.
6
S015-080206
BOLT
4шт.
7
S411-080006
WASHER
4шт.
8
S403-08200B
WASHER
4шт.
9
S791-060030
GROMMET
1шт.
10
71EH-13150
SILENTBLOC
1шт.
11
S205-10100B
NUT
1шт.
12
S109-080206
BOLT
4шт.
13
S035-082526
BOLT,M8 x 1.25 x 25mm
5шт.
14
71M9-22102CG
CONSOLE
1шт.
15
71M9-22130
BRACKET
1шт.
16
FAC0700820-01
KNOB
3шт.
17
71M9-20013CG
BASE PLATE
1шт.
18
S791-045010
GROMMET
1шт.
19
71M9-22570CG
PLATE
1шт.
20
S035-061526
BOLT
4шт.
