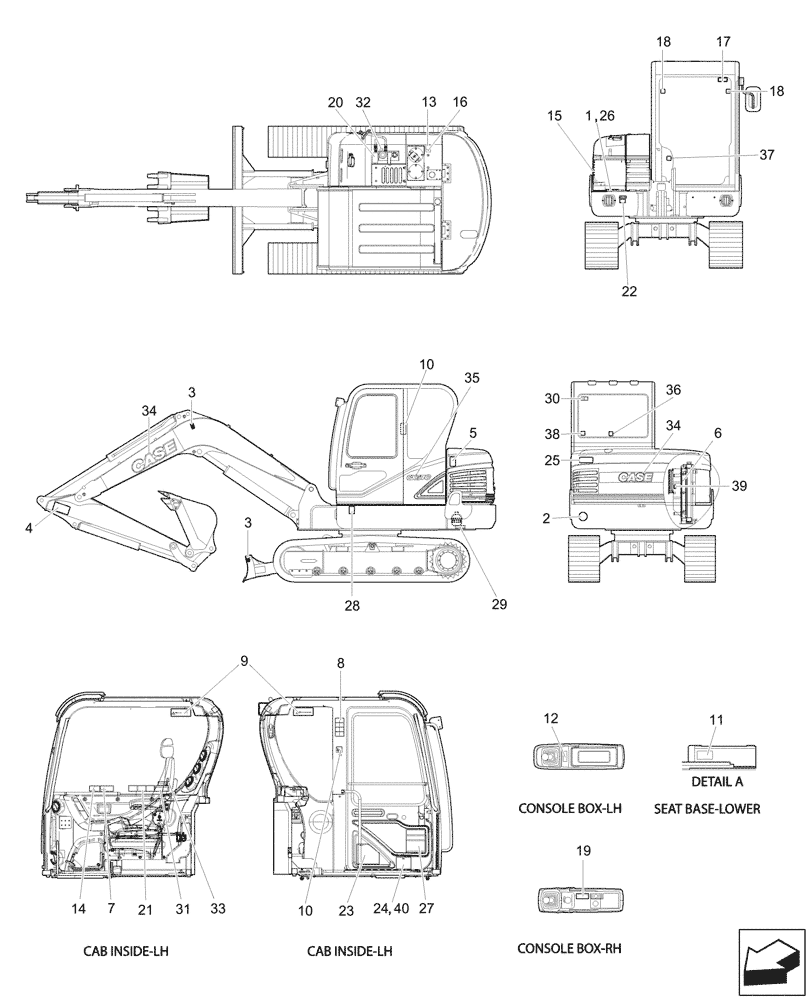

Запчасти Case CX57C (90.108.010) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
91M8-02122
Battery Accident
DECAL
1шт.
2
91M9-04020
DECAL
Reflecting
2шт.
3
91M8-05110
DECAL
Lifting Point
4шт.
4
91M8-06111
Keep Clear, Attachment
DECAL
2шт.
5
91M8-07021
Keep Clear, Side
DECAL
2шт.
6
91M8-07111
Caution, Engine Room
DECAL
1шт.
7
91M9-17300
DECAL
Control, STD - ISO
1шт.
7
91M9-17510
Control, Forest
DECAL
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
2nd Auxiliary Circuit Proportional, Var. 747053
1шт.
1st Auxiliary Circuit, 2 Way, Var. 747122
1шт.
7
91M9-17500
Control, Forest
DECAL
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
Without 2nd Auxiliary Circuit Proportional, Var. 747999
1шт.
1st Auxiliary Circuit, 2 Way, Var. 747122
1шт.
7
91M9-17360
DECAL
Control, 2 Way - ISO
1шт.
7
91M9-17320
DECAL
Control - ISO
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
7
91M9-17340
DECAL
Control - East Asia
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
7
91M9-17350
DECAL
Control, 2 Way - ISO
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
8
91M9-07243
Cautions Cab
DECAL
1шт.
9
91M8-07251
Safety Front Window
DECAL
2шт.
10
91Q6-07280
DECAL
Hammer
1шт.
11
91M8-07270
DECAL
A/C Filter
1шт.
12
91M8-07300
DECAL
Console Tilting
1шт.
13
91N6-03112
Hydraulic Oil
DECAL
1шт.
14
91M9-07350
DECAL
Boom Swing Lock
1шт.
15
91MJ-02110
DECAL
Battery Position
1шт.
16
91Q6-03230
DECAL
Fuel Shut Off
1шт.
17
91M9-07150
DECAL
Wiper Window
1шт.
18
91M9-07112
Stay Fix Cab
DECAL
2шт.
19
91M9-07391
Ideogram
DECAL
1шт.
21
91M9-04111
DECAL
Warning, Frame
1шт.
22
91M8-04130
DECAL
Grease
1шт.
Upper Frame With Fixed Boom, Var. 747077
1шт.
22
91M8-04140
DECAL
Grease
1шт.
Upper Frame With Swing Boom, Var. 747076
1шт.
23
97M9-17174
Service Instruction
DECAL
1шт.
24
9MM9-02100
Lifting Chart, ASSY, Incl 40
DECAL
1шт.
Standard Counterweight, Var. 747995
1шт.
24
9MM9-02200
Lifting Chart, ASSY, Incl 40
DECAL
1шт.
Additional Counterweight, Heavy, Var. 747084
1шт.
24
9MM9-02300
Lifting Chart, ASSY, Incl 40
DECAL
1шт.
Additional Counterweight, Light, Var. 747085
1шт.
25
91M8-07011
Keep Clear, Rear
DECAL
2шт.
26
91M8-02140
DECAL
ECU Connector
1шт.
27
91M8-07360
DECAL
Control, Cab
1шт.
Pattern Change, Var. 747068
1шт.
28
91N6-22080
DECAL
Noise, LWA 98 dB
1шт.
29
91N6-03201
Accumulator
DECAL
1шт.
30
91Q4-02201
Beacon
DECAL
1шт.
31
91Q4-07180
DECAL
Water Separator
1шт.
32
98Q6-07390
DECAL
Ultra Low Sulfur Diesel
1шт.
33
97M9-07380
DECAL
Lubrication Oil
1шт.
34
9MM9-23100
CASE Logo
DECAL
3шт.
35
9MM9-10010
CX57C
DECAL
2шт.
36
91Q6-07290
DECAL
Fire Extinguisher
1шт.
Fire Extinguisher, Var. 747095
1шт.
37
9KM9-07210
Master Switch
DECAL
1шт.
38
9KM9-07260
Safety, Rear Window
DECAL
1шт.
39
91M9-07200
Refrigerant
DECAL
1шт.
40
9MM9-02110
DECAL
1шт.
Standard Counterweight, Var. 747995
1шт.
Short Arm (1.6M), Var. 747078, 747320
1шт.
Rubber Track, Var. 9552711
1шт.
40
9MM9-02120
DECAL
1шт.
Standard Counterweight, Var. 747995
1шт.
Long Arm (1.9M), Var. 747079, 747329
1шт.
Rubber Track, Var. 9552711
1шт.
40
9MM9-02220
DECAL
1шт.
Additional Counterweight, Heavy, Var. 747084
1шт.
Long Arm (1.9M), Var. 747079, 747329
1шт.
Rubber Track, Var. 9552711
1шт.
40
9MM9-02240
DECAL
1шт.
Additional Counterweight, Heavy, Var. 747084
1шт.
Long Arm (1.9M), Var. 747079, 747329
1шт.
Rubber Pad, Var. 9552710
1шт.
40
9MM9-02250
DECAL
1шт.
Additional Counterweight, Heavy, Var. 747084
1шт.
Short Arm (1.6M), Var. 747078, 747320
1шт.
Track Pad, Var. 9552611, 9552612
1шт.
40
9MM9-02260
DECAL
1шт.
Additional Counterweight, Heavy, Var. 747084
1шт.
Long Arm (1.9M), Var. 747079, 747329
1шт.
Track Pad, Var. 9552611, 9552612
1шт.
40
9MM9-02310
DECAL
1шт.
Additional Counterweight, Light, Var. 747085
1шт.
Short Arm (1.6M), Var. 747078, 747320
1шт.
Rubber Track, Var. 9552711
1шт.
40
9MM9-02320
DECAL
1шт.
Additional Counterweight, Light, Var. 747085
1шт.
Long Arm (1.9M), Var. 747079, 747329
1шт.
Rubber Track, Var. 9552711
1шт.
Выбрано товаров: 96
