(90.105.040) - HOUSING & COVERS

Запчасти Case CX57C (90.105.040) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

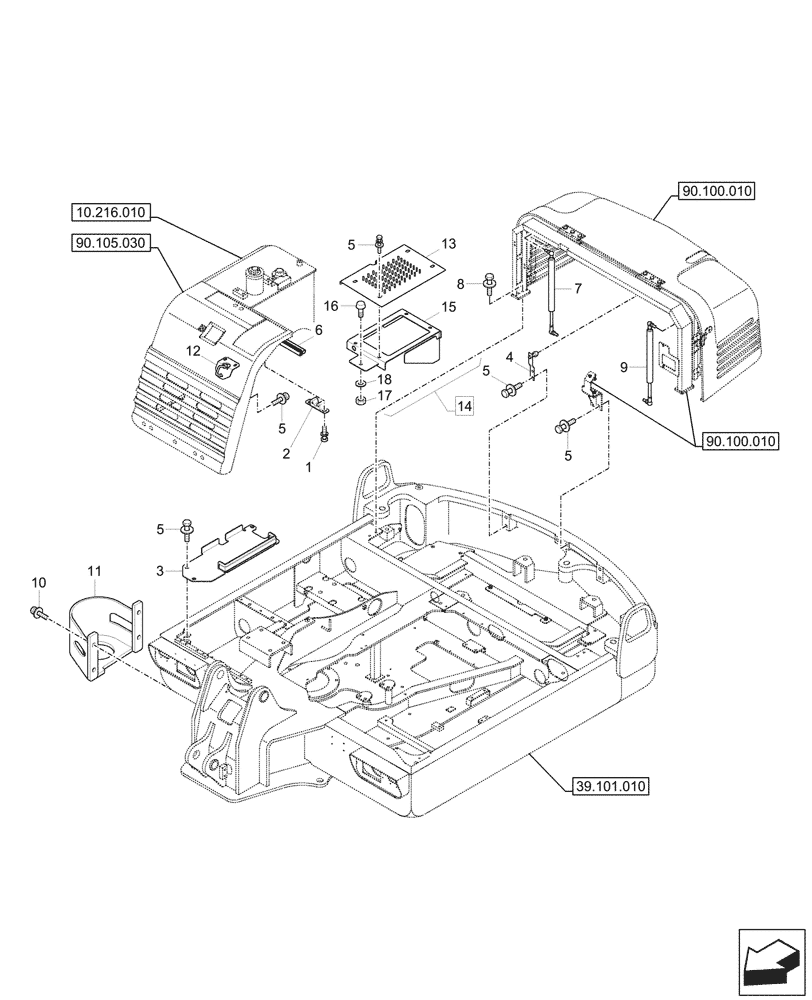

Схема запчастей Case CX57C - (90.105.040) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.030
18
5
6
15
5
4
17
1
10
5
5
14
13
3
11
12
9
2
7
16
5
8
10.216.010
90.100.010
90.100.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S035-081556

BOLT

2шт.

2

71Q6-53951

STOP

1шт.

3

71M9-42300CG

COVER

1шт.

4

71M8-51010CG

BRACKET

2шт.

5

S037-102056

BOLT,M10 x 1.5 x 20mm

17шт.

6

S772-009000

STRIP

1шт.

7

71M8-51203

GAS STRUT

1шт.

8

S037-123556

BOLT

4шт.

9

71M8-51341

GAS STRUT

1шт.

10

S037-122556

BOLT

4шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

11

71M8-51051CG

COVER

1шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

12

72M9-41061

STRIKER

1шт.

13

71M9-41026CA

COVER

1шт.

14

71M9-41504CA

PLATE

ASSY, Incl 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, Incl in 14

1шт.

16

71M9-41540

DAMPER

1шт.

17

S205-081006

NUT

1шт.

18

S403-082006

WASHER

1шт.
