(90.105.020) - VAR - 747076 - UPPER, FRAME, COVERS

Запчасти Case CX57C (90.105.020) - VAR - 747076 - UPPER, FRAME, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

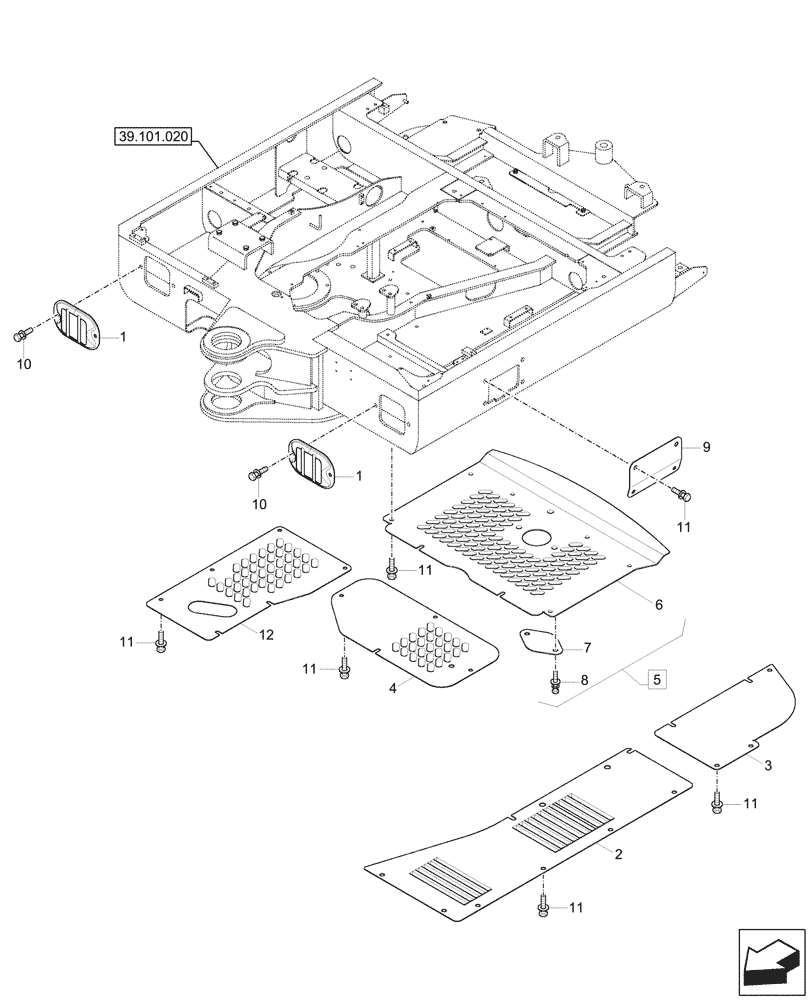

Схема запчастей Case CX57C - (90.105.020) - VAR - 747076 - UPPER, FRAME, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
12
11
11
7
3
5
11
1
10
2
9
4
8
11
11
6
1
10
39.101.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

41MN-10010CG

GUARD

Lamp

2шт.

2

41M9-10020CG

COVER

Cabin

1шт.

3

41M9-10031CG

COVER

Pump

1шт.

4

41M9-10040CG

COVER

1шт.

5

41M9-10150CG

COVER

Engine, ASSY, Incl 6 - 8

1шт.

6

41M9-10160

COVER

1шт.

7

41M8-10081GG

COVER

Oil Drain

1шт.

8

S037-102056

BOLT,M10 x 1.5 x 20mm

2шт.

9

41M9-10093CG

COVER

1шт.

10

S035-081556

BOLT

4шт.

11

S037-102066

BOLT

36шт.

12

41M9-10100CG

COVER

Tank

1шт.

Выбрано товаров: 12
