(90.105.010) - VAR - 747077 - UPPER, FRAME, COVERS

Запчасти Case CX57C (90.105.010) - VAR - 747077 - UPPER, FRAME, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

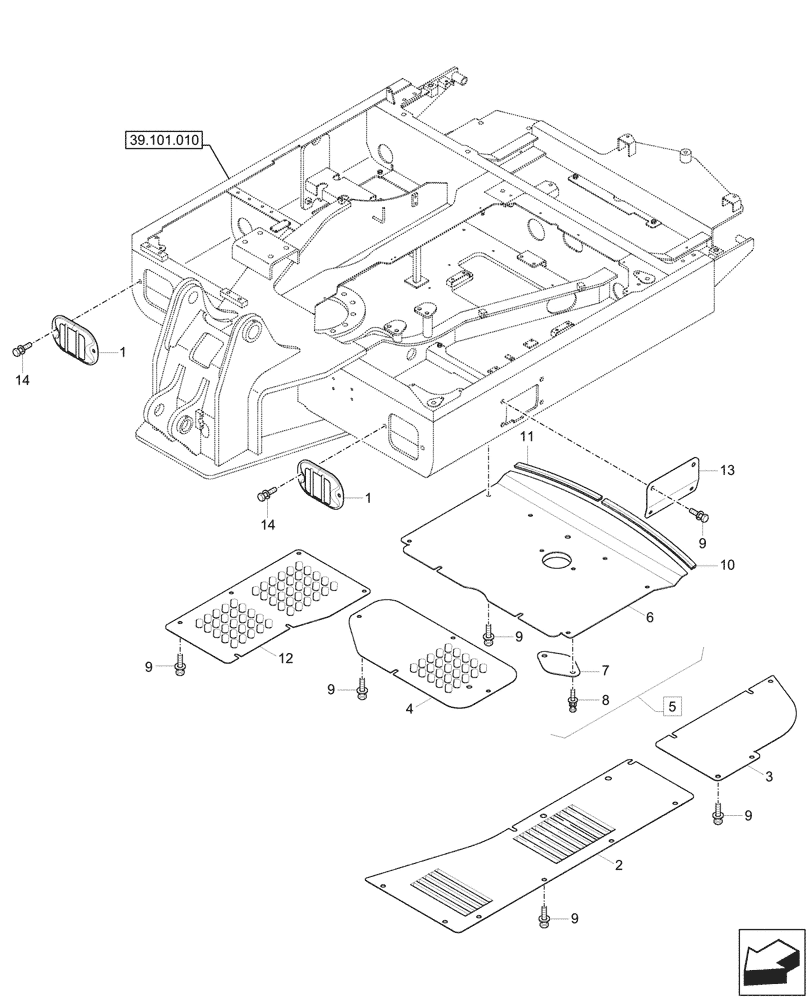

Схема запчастей Case CX57C - (90.105.010) - VAR - 747077 - UPPER, FRAME, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
5
8
1
9
1
2
14
13
6
14
11
7
9
9
10
9
9
3
9
4
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

41MN-10010CG

GUARD

Lamp

2шт.

2

41M9-10020CG

COVER

Cabin

1шт.

3

41M9-10031CG

COVER

Pump

1шт.

4

41M9-10040CG

COVER

1шт.

5

41M9-10052CG

COVER

Engine, ASSY, Incl 6 - 8

1шт.

6

41M9-10063

COVER

1шт.

7

41M8-10081

COVER

Oil Drain

1шт.

8

S037-102056

BOLT,M10 x 1.5 x 20mm

2шт.

9

S037-102566

BOLT

34шт.

10

S772-005400

STRIP

1шт.

11

S772-009200

STRIP

1шт.

12

41M9-10080CG

COVER

Tank

1шт.

13

41M9-10093CG

COVER

1шт.

14

S035-081556

BOLT

4шт.

Выбрано товаров: 14
