/ / / / / / / / (84.100.020) - VAR - 747062, 747063 - BUCKET, LINK CONROD

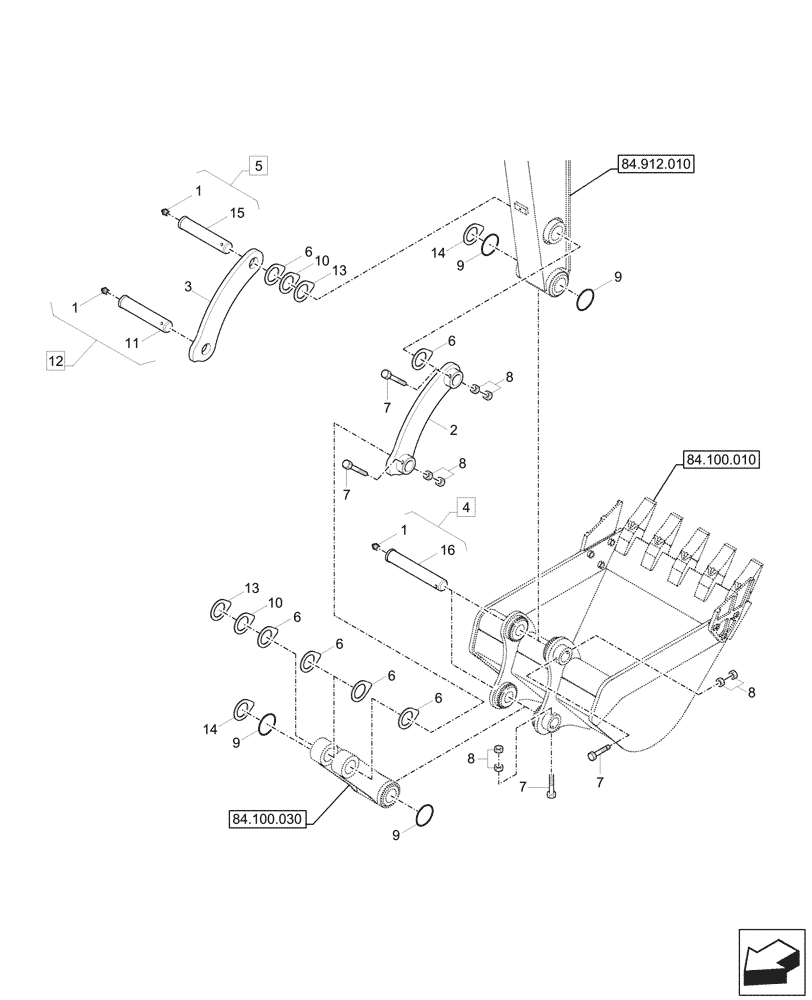

Запчасти Case CX57C (84.100.020) - VAR - 747062, 747063 - BUCKET, LINK CONROD (84) - BOOMS, DIPPERS & BUCKETS
84.100.030
9
10
1
9
8
11
7
1
16
4
6
6
12
6
3
13
6
14
7
7
1
6
10
7
15
9
8
14
8
8
9
5
6
13
2
84.100.010
84.912.010
1
S651-810002
NIPPLE
3шт.
2
61M8-42200CG
LINK
LH
1шт.
3
61M8-42300CG
LINK
RH
1шт.
4
61M9-53100
PIN
ASSY, Incl 1, 16
2шт.
5
61M9-53220
PIN
ASSY, Incl 1, 15
1шт.
6
S991-045080
SHIM
Polymer, 1mm Thk
7шт.
7
S017-120956
BOLT
4шт.
8
S205-12100B
NUT
8шт.
9
61M8-30520
O-RING
4шт.
10
S993-045080
SHIM
Polymer, 2mm Thk
2шт.
11
NSS
NOT SOLD SEPARAT
Pin, Incl in 12
1шт.
12
61M9-53210
PIN
ASSY, Incl 1, 11
1шт.
13
S992-045080
SHIM
2шт.
14
S390-045080A
SHIM
0.5mm Thk
2шт.
15
NSS
NOT SOLD SEPARAT
Pin, Incl in 5
1шт.
16
NSS
NOT SOLD SEPARAT
Pin, Incl in 4
1шт.
