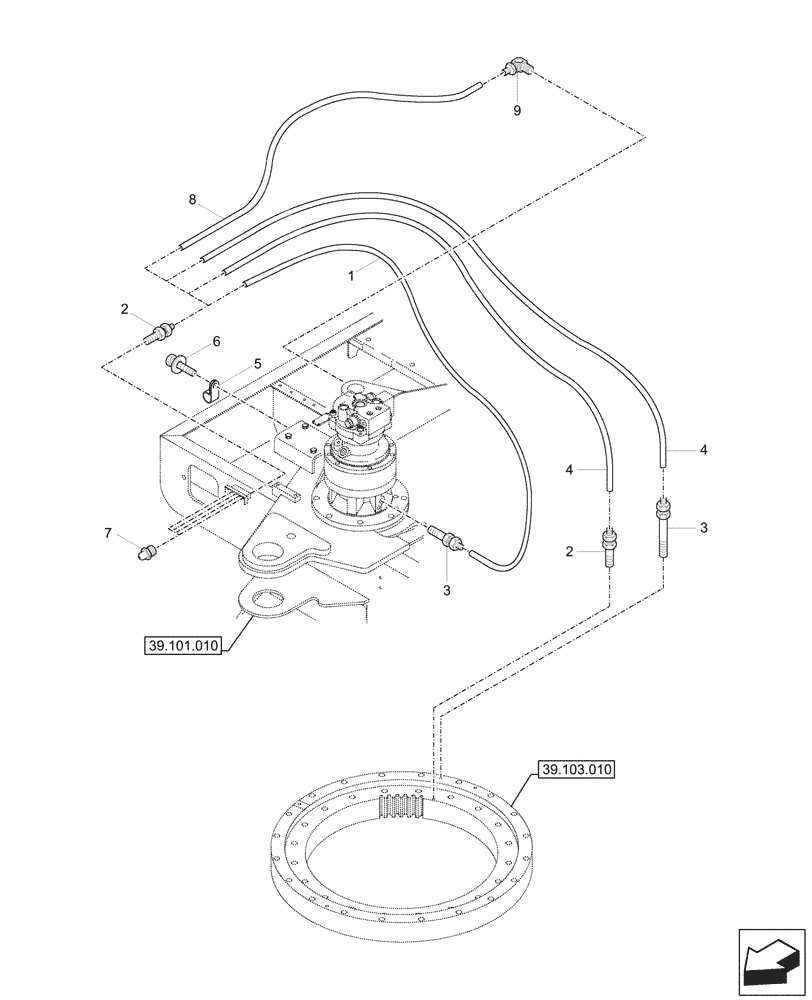

Запчасти Case CX57C (71.460.010) - VAR - 747076, 747077 - LUBRICATION LINE (71) - LUBRICATION SYSTEM

1

51M6-45020

PIPE

1шт.

2

81M6-00010

HYD CONNECTOR

4шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

2

81M6-00010

HYD CONNECTOR

5шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

3

81M6-00030

HYD CONNECTOR

2шт.

4

51M6-40120

PIPE

2шт.

5

S543-200002

CLAMP

1шт.

6

S037-102056

BOLT,M10 x 1.5 x 20mm

1шт.

7

S652-810002

NIPPLE

3шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

7

S652-810002

NIPPLE

4шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

8

51M6-40110

PIPE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

9

81M6-00020

45 ELBOW

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.
