(55.512.030) - INSTRUMENT CLUSTER, COMPONENTS

Запчасти Case CX57C (55.512.030) - INSTRUMENT CLUSTER, COMPONENTS (55) - ELECTRICAL SYSTEMS

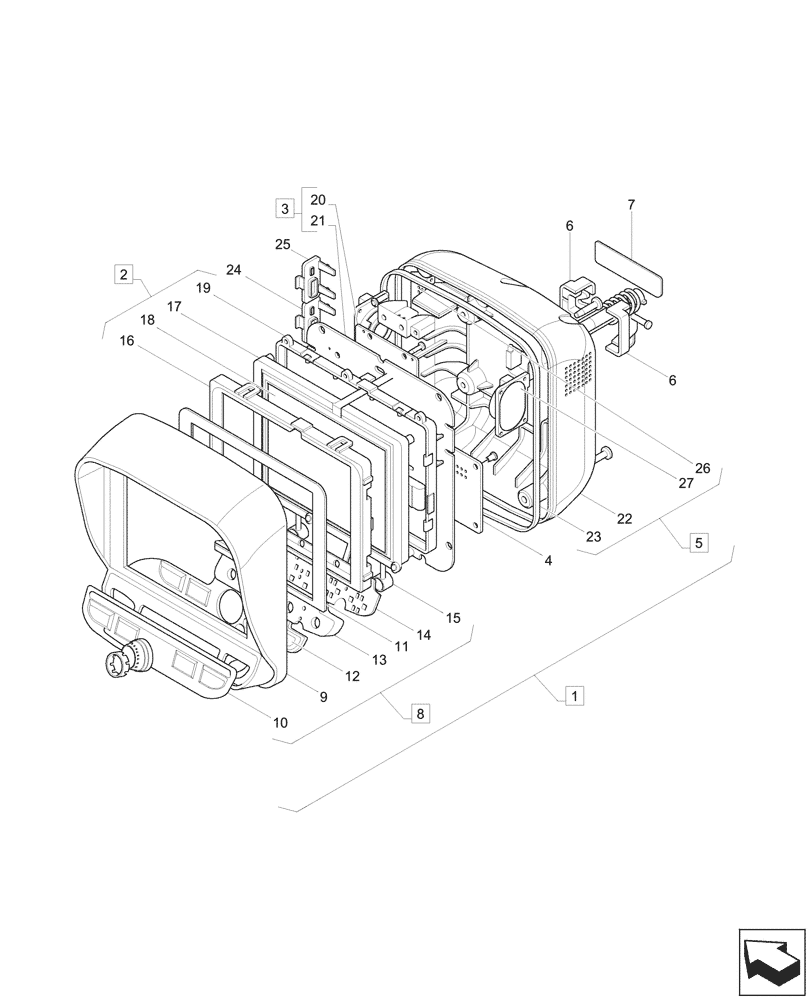

Схема запчастей Case CX57C - (55.512.030) - INSTRUMENT CLUSTER, COMPONENTS (55) - ELECTRICAL SYSTEMS
11
23
6
8
3
1
13
6
24
5
14
9
21
22
26
20
12
27
19
25
10
7
4
17
18
2
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2LM9-36001

ASSY, Incl 2 - 27

1шт.

2

21M9-37201

CLUSTER

LCD, ASSY, Incl 16 -19

1шт.

3

21M9-37351

PRINTED CIRCUIT BOAR

ASSY, Incl 20, 21

1шт.

4

21M9-37401

PRINTED CIRCUIT BOAR

1шт.

5

21M9-37590

SHELL

ASSY, Incl 22 - 27

1шт.

6

21M9-37600

WIRE CLAMP

2шт.

7

21M9-37700

DECAL

1шт.

8

21M9-37101

INSTRUMENT CLUSTER

ASSY, Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

Front Case, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

Membrane, Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Cushion, Incl in 8

1шт.

12

NSS

NOT SOLD SEPARAT

Key Pad, Incl in 8

1шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Pad, Incl in 8

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Seat, Incl in 8

1шт.

16

NSS

NOT SOLD SEPARAT

Holder, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

LCD Module, Incl in 2

1шт.

18

NSS

NOT SOLD SEPARAT

Touch Panel, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.

20

NSS

NOT SOLD SEPARAT

ECU, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Main PCB, Incl in 3

1шт.

22

NSS

NOT SOLD SEPARAT

Rear Cover, Incl in 5

1шт.

23

NSS

NOT SOLD SEPARAT

Gasket, Incl in 5

1шт.

24

NSS

NOT SOLD SEPARAT

Cap SD Card, Incl in 5

1шт.

25

NSS

NOT SOLD SEPARAT

Cap USB, Incl in 5

1шт.

26

NSS

NOT SOLD SEPARAT

Speaker Protector, Incl in 5

2шт.

27

NSS

NOT SOLD SEPARAT

Speaker, Incl in 5

2шт.
