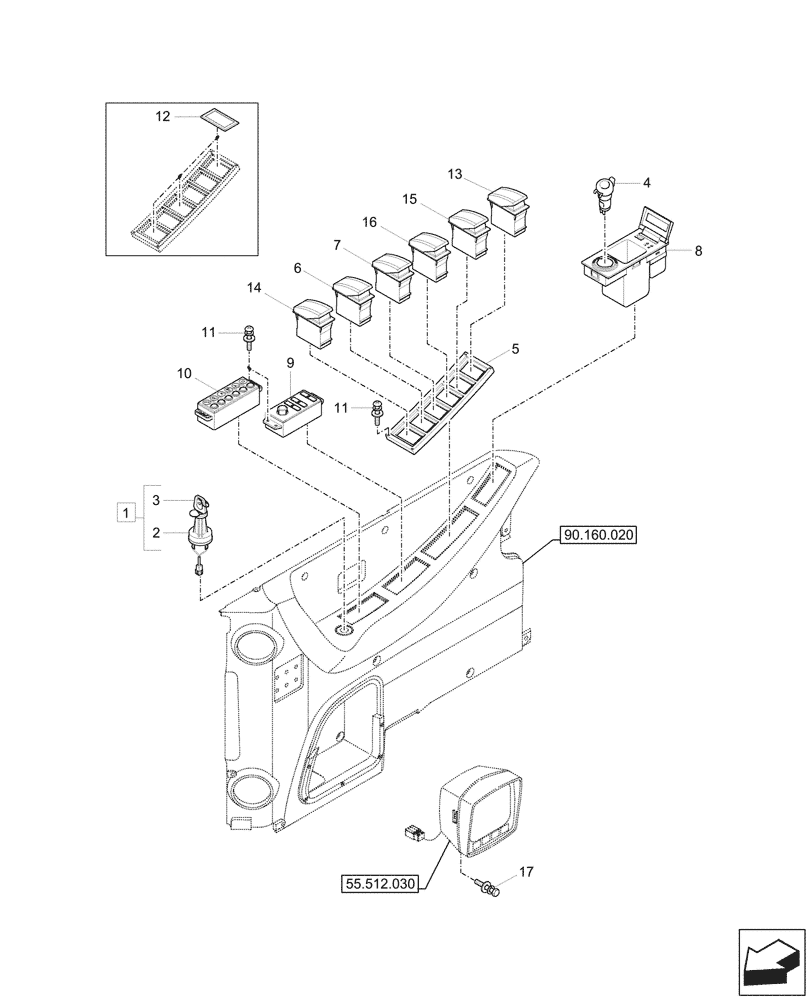

Запчасти Case CX57C (55.512.020) - INSTRUMENT PANEL, SWITCH (55) - ELECTRICAL SYSTEMS

1

21Q4-00071

IGNITION SWITCH

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Ignition Key, Incl in 1

1шт.

3

21Q4-21210

IGNITION KEY

1шт.

4

21M8-01420

SOCKET

Power

1шт.

5

21E6-10470

FRAME

1шт.

6

21M9-32200

SWITCH

Wiper

1шт.

7

21M9-32300

SWITCH

Washer

1шт.

8

21M9-31900

WIRE HARNESS

1шт.

9

21M9-30250

CONTROLLER

1шт.

10

21M9-30401

SWITCH

1шт.

11

S131-051546

CAPTIVE WASHER SCREW

14шт.

12

21E6-10460

COVER

3шт.

13

21M9-22300

SWITCH

DPF

1шт.

14

21M9-30800

SWITCH

Quick Clamp

1шт.

Hydraulic Quick Coupler, Var. 747064

1шт.

15

NSS

NOT SOLD SEPARAT

Switch, Air Compressor

1шт.

16

21M9-30900

SWITCH

Overload

1шт.

Boom Safety Valve, Var. 747083

1шт.

17

S035-081526

BOLT,M8 x 1.25 x 15mm

4шт.
