(55.011.030) - VAR - 747092 - FUEL TRANSFER PUMP, COMPONENTS

Запчасти Case CX57C (55.011.030) - VAR - 747092 - FUEL TRANSFER PUMP, COMPONENTS (55) - ELECTRICAL SYSTEMS

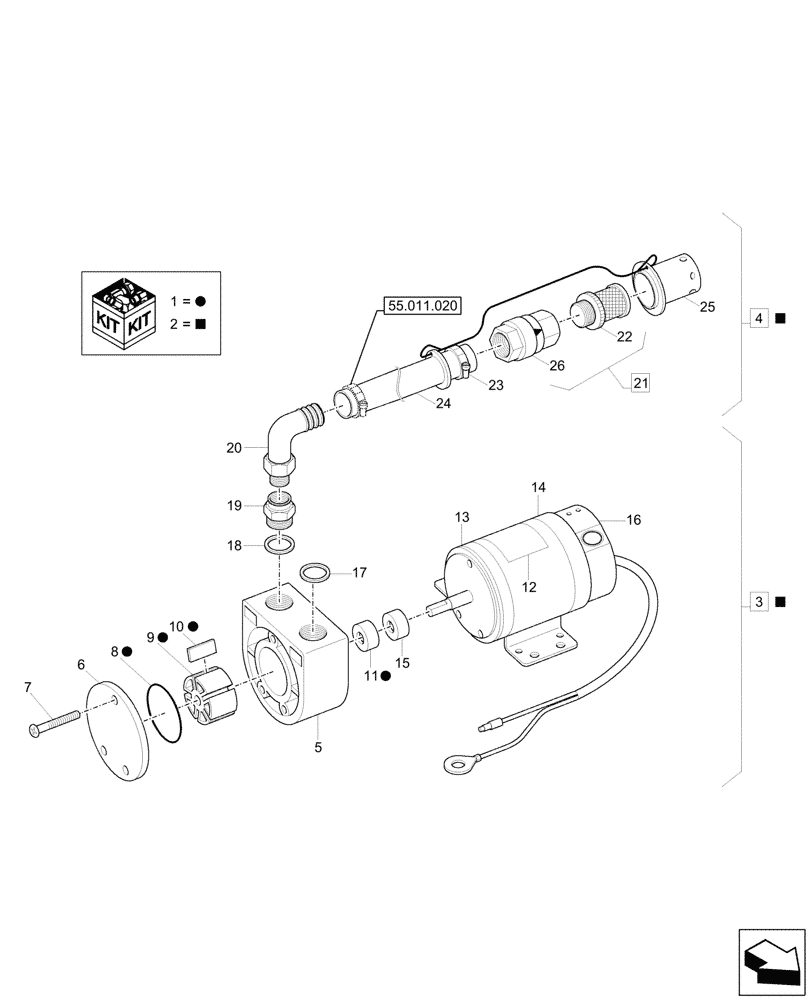

Схема запчастей Case CX57C - (55.011.030) - VAR - 747092 - FUEL TRANSFER PUMP, COMPONENTS (55) - ELECTRICAL SYSTEMS
1
16
5
14
1
4
26
24
1
20
1
25
17
13
2
1
22
15
6
11
21
8
12
9
18
2
7
2
19
2
3
10
1
23
55.011.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

21EM-46201

SERVICE KIT

Rotor, ASSY, Incl 8 - 11

1шт.

2

21Q6-75200

SERVICE KIT

Fuel Pump, ASSY, Incl 3, 4

1шт.

See Also Figure 10.216.010

1шт.

See Also Figure 55.011.020

1шт.

3

21M8-50062

FUEL PUMP

ASSY, Incl 5 - 20

1шт.

See Also Figure 55.011.020

1шт.

4

21M6-55030

FUEL HOSE

ASSY, Incl 21 - 26

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

1шт.

8

21EM-45050

O-RING

1шт.

9

21EM-45060

ROTOR

1шт.

10

21EM-45070

PLATE

5шт.

11

21EM-45080

SEAL

1шт.

12

21M8-45091

DECAL

1шт.

13

NSS

NOT SOLD SEPARAT

Front Cover, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Rear Cover, Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing, Incl in 3

1шт.

16

21EM-45101

TOOL BOX

Switch

1шт.

17

21EM-45500

WASHER

3шт.

18

21EM-45700

FITTING

1шт.

19

21EM-45800

NUT

1шт.

20

21EM-45900

ELBOW

1шт.

21

21M5-50260

VALVE

1шт.

22

2P1-SP-01

FILTER STRAINER

1шт.

23

S520-027000

HOSE CLAMP

1шт.

24

21M5-51143

FUEL HOSE

1шт.

25

21EM-46300

CAP

1шт.

26

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 21

1шт.
