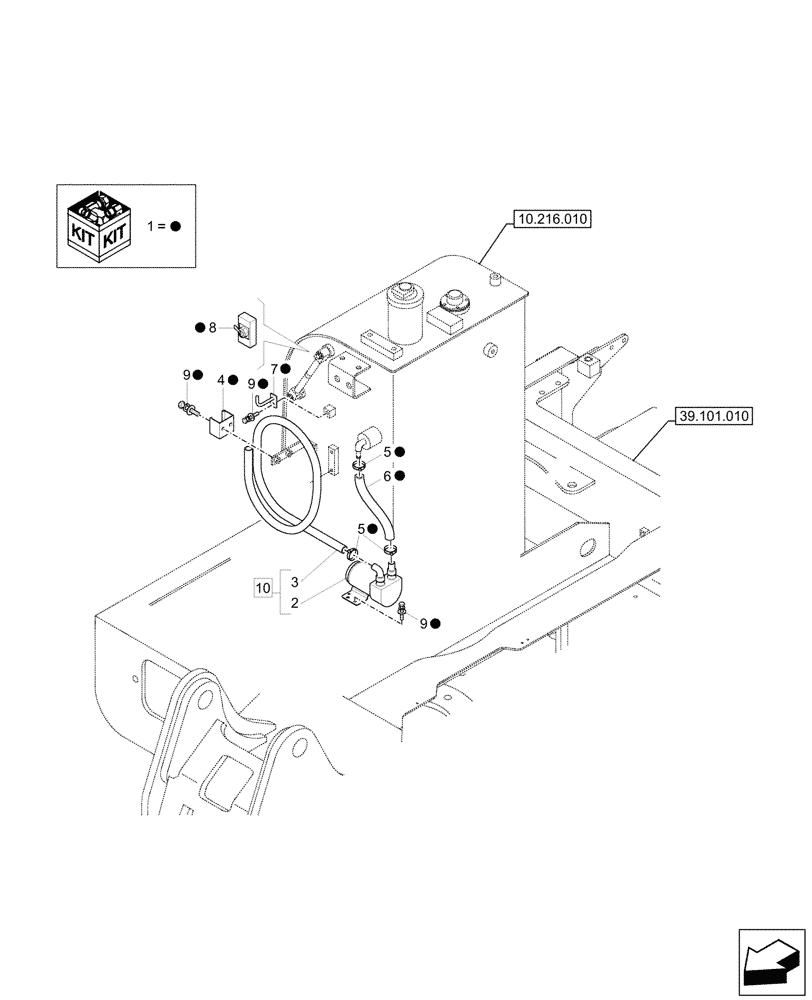

Запчасти Case CX57C (55.011.020) - VAR - 747092 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS

1

21Q6-75200

SERVICE KIT

Fuel Pump, ASSY, Incl 4 - 9

1шт.

2

21M8-50062

FUEL PUMP

1шт.

See Also Figure 55.011.030

1шт.

3

21M6-55030

FUEL HOSE

1шт.

4

21N4-00770

CLIP

2шт.

5

S520-032000

HOSE CLAMP

3шт.

6

21M9-01970

HOSE

Outlet

1шт.

7

21M8-01951

PLATE

1шт.

8

21E9-2001

SWITCH

1шт.

9

S035-081526

BOLT,M8 x 1.25 x 15mm

5шт.

10

21M8-50052

FUEL PUMP

ASSY, Incl 2, 3

1шт.
