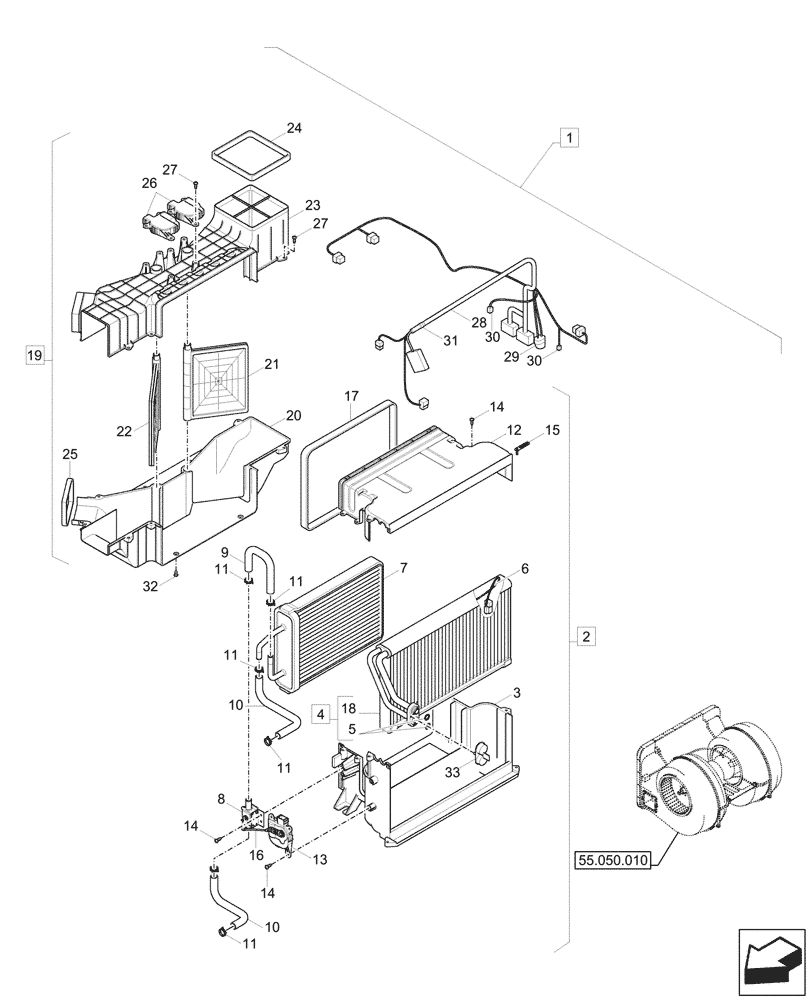

Запчасти Case CX57C (50.100.010) - AIR CONDITIONING, COMPONENTS (50) - CAB CLIMATE CONTROL

1

11M9-90013

CONDITIONING UNIT

HVAC Unit, ASSY, Incl 2 - 33

1шт.

2

XKAN-00041

EVAPORATOR

ASSY, Incl 3 - 17

1шт.

3

XKAN-00001

TOOL BOX

Case, Lower

1шт.

4

XKAN-00002

CORE

Evaporator, ASSY, Incl 5, 18

1шт.

5

XKAN-00003

O-RING

2шт.

6

XKAN-00004

TEMPERATURE SENDER

1шт.

7

XKAN-00005

CORE

Heater

1шт.

8

XKAN-00006

COCK

1шт.

9

XKAN-00007

HOSE

1шт.

10

XKAN-00008

HOSE

2шт.

11

XKAN-00049

CLAMP

6шт.

12

XKAN-00010

TOOL BOX

Case, Upper

1шт.

13

XKAN-00011

ACTUATOR

With Valve

1шт.

14

XKAN-00012

BOLT

13шт.

15

XKAN-00013

HOLDER

1шт.

16

XKAN-00014

ROD

1шт.

17

XKAN-00015

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

Evaporator, Incl in 4

1шт.

19

XKAN-00016

DISTRIBUTOR

12V, ASSY, Incl 20 - 27

1шт.

20

XKAN-00017

DISTRIBUTOR

Lower

1шт.

21

NSS

NOT SOLD SEPARAT

Grille, Incl in 19

1шт.

22

NSS

NOT SOLD SEPARAT

Grille, Incl in 19

1шт.

23

XKAN-00020

DISTRIBUTOR

Upper

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Incl in 19

1шт.

25

NSS

NOT SOLD SEPARAT

Seal, Incl in 19

1шт.

26

XKAN-00023

ACTUATOR

With Valve

2шт.

27

XKAN-00012

BOLT

15шт.

28

XKAN-00034

WIRE HARNESS

AC

1шт.

29

XKAN-00035

RELAY

1шт.

30

XKAN-00040

SENSOR

1шт.

31

XKAN-00051

CLAMP

1шт.

32

XKAN-00012

BOLT

8шт.

33

XKAN-00037

CAP

1шт.
