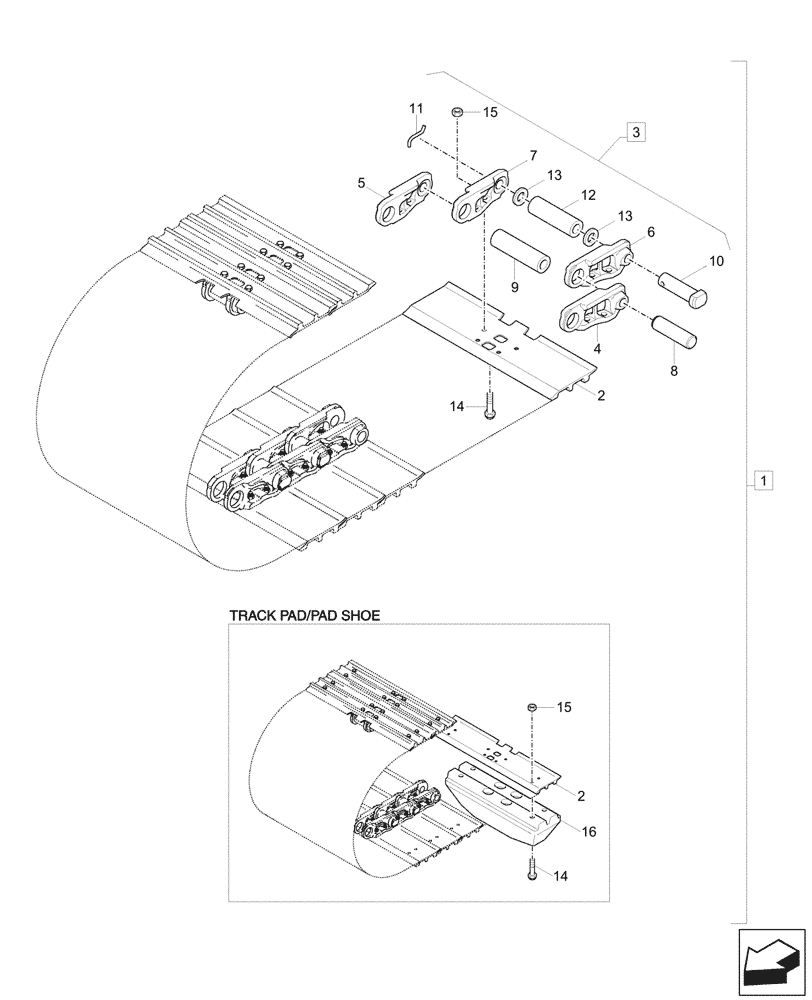

Запчасти Case CX57C (48.100.010) - VAR - 9552610, 9552611, 9552612 - TRACK CHAIN (48) - TRACKS & TRACK SUSPENSION

1

8LM9-24010CG

TRACK ASSY

380mm, ASSY, Incl 2 - 15

2шт.

Steel Tracks With Pads (380mm), Var. 9552611

1шт.

1

8LM9-24020CG

TRACK ASSY

450mm, ASSY, Incl 2 - 15

2шт.

Steel Tracks (450mm), Var. 9552610

1шт.

1

8LM9-29500CG

TRACK ASSY

ASSY, Incl 2 - 16

2шт.

Steel Tracks With Rubber Pad (400mm), Var. 9552612

1шт.

2

81M9-24510

TRACK SHOE

380mm

40шт.

Steel Tracks With Pads (380mm), Var. 9552611

1шт.

2

81M9-24520

TRACK SHOE

450mm

40шт.

Steel Tracks (450mm), Var. 9552610

1шт.

2

8LM9-29050CG

TRACK SHOE

Track Pad

2шт.

Steel Tracks With Rubber Pad (400mm), Var. 9552612

1шт.

3

81M9-24602

ASSY, Incl 4 - 13

TRACK CHAIN

1шт.

4

81M9-24112

LH

CHAIN LINK

39шт.

5

81M9-24102

RH

CHAIN LINK

39шт.

6

81M9-24132

LH

CHAIN LINK

1шт.

7

81M9-24122

RH

CHAIN LINK

1шт.

8

81M9-24140

PIN

39шт.

9

81M9-24150

BUSHING

39шт.

10

81M9-24160

PIN

1шт.

11

81M9-26170

PIN

1шт.

12

81M9-24170

BUSHING

1шт.

13

81M9-24180

SPACER

2шт.

14

81M9-24611

SCREW

160шт.

15

81M9-24621

NUT

160шт.

16

81M9-29060

RUBBER SEAL

40шт.

Steel Tracks With Rubber Pad (400mm), Var. 9552612

1шт.
