(35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX57C (35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

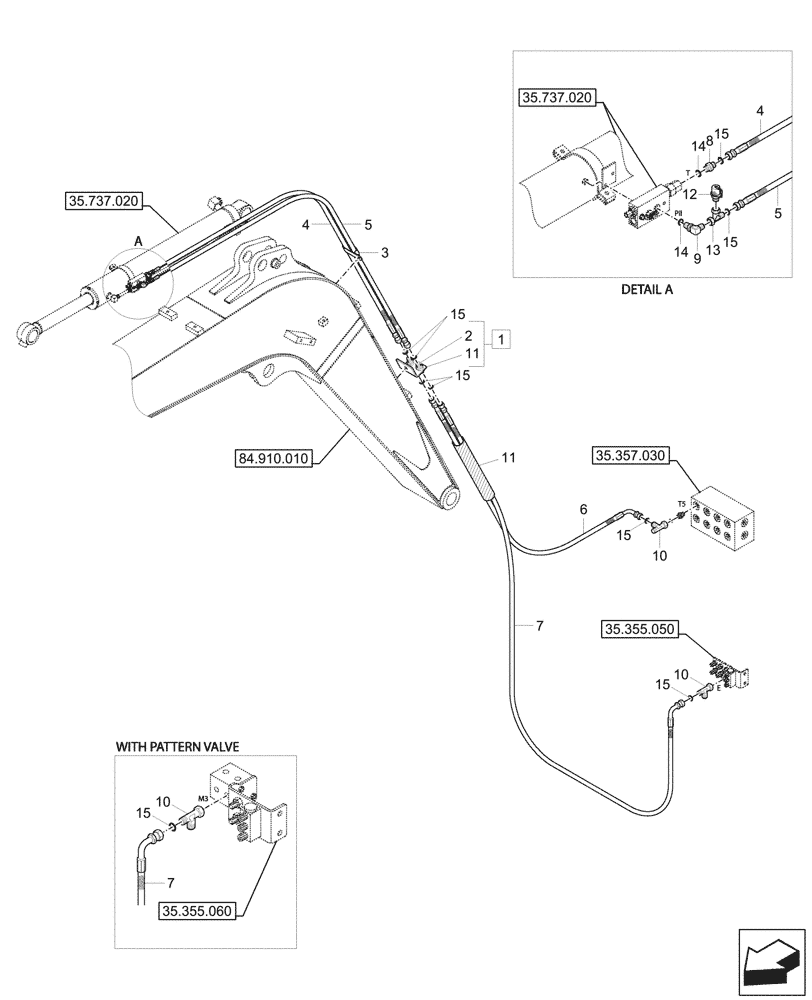

Схема запчастей Case CX57C - (35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
9
1
15
5
8
15
3
4
4
15
15
11
2
15
15
10
5
7
10
10
7
11
6
13
14
14
15
12
35.737.020
35.737.020
35.355.050
35.355.060
35.357.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M8-90131

TERMINAL

ASSY, Incl 2, 11

1шт.

2

X540-120001

HYD CONNECTOR

2шт.

3

31HA-10130

CLAMP

1шт.

4

P910-042046

HYDRAULIC HOSE

1шт.

5

P910-042045

HYDRAULIC HOSE

1шт.

6

31ML-96650

HOSE

1шт.

7

31ML-96670

HOSE

1шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

9

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X840-515151

TEE,9/16 - 18 UNF

Swivel

2шт.

11

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

12

31EK-11130

SCREW,M16

1шт.

13

31N6-66080

TEE

Brench Test

1шт.

14

S631-011004

O-RING,PF 1/4

2шт.

15

S621-011001

O-RING,9/16 - 18 UNF

8шт.
