(35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX57C (35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

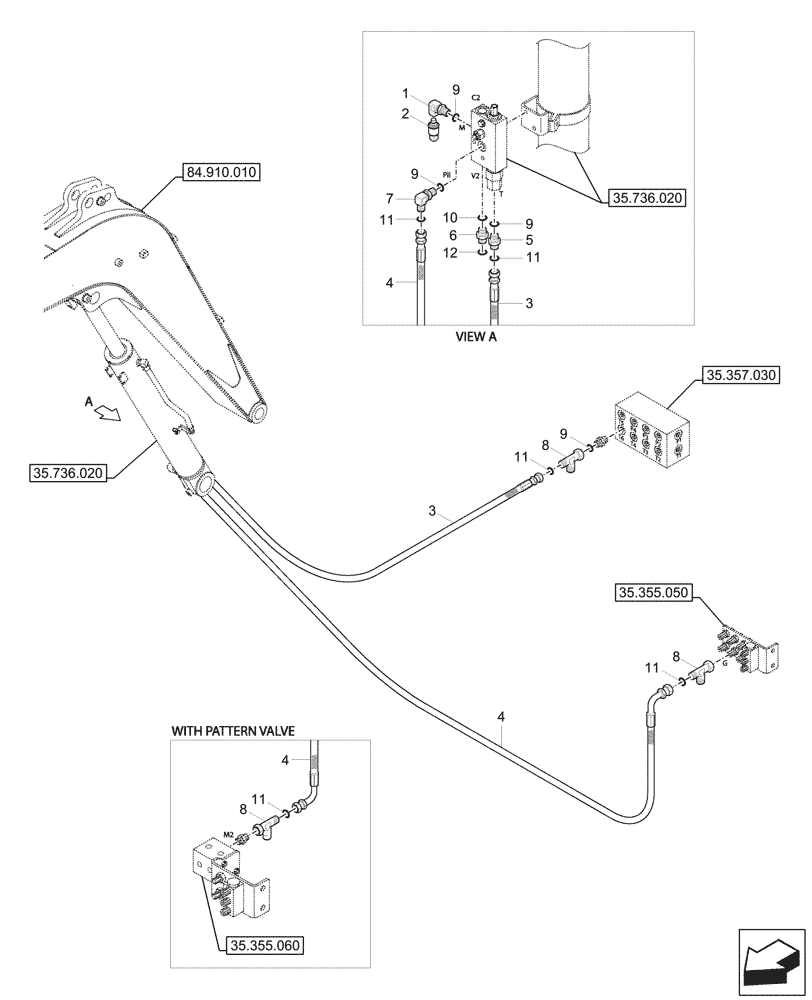

Схема запчастей Case CX57C - (35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
9
3
3
8
11
5
9
1
10
11
9
7
11
9
2
4
4
4
11
8
12
8
6
11
35.736.020
35.736.020
35.355.050
35.355.060
35.357.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31E5-11110

ADAPTER

1шт.

2

31Q4-40800

SENSOR

Pressure

1шт.

3

P930-042054

HYDRAULIC HOSE

1шт.

4

P930-042068

HYDRAULIC HOSE

1шт.

5

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

6

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

1шт.

7

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

8

X840-515151

TEE,9/16 - 18 UNF

Swivel

2шт.

9

S631-011004

O-RING,PF 1/4

4шт.

10

S631-018004

O-RING

1шт.

11

S621-012001

O-RING

5шт.

12

S621-014001

O-RING

1шт.
