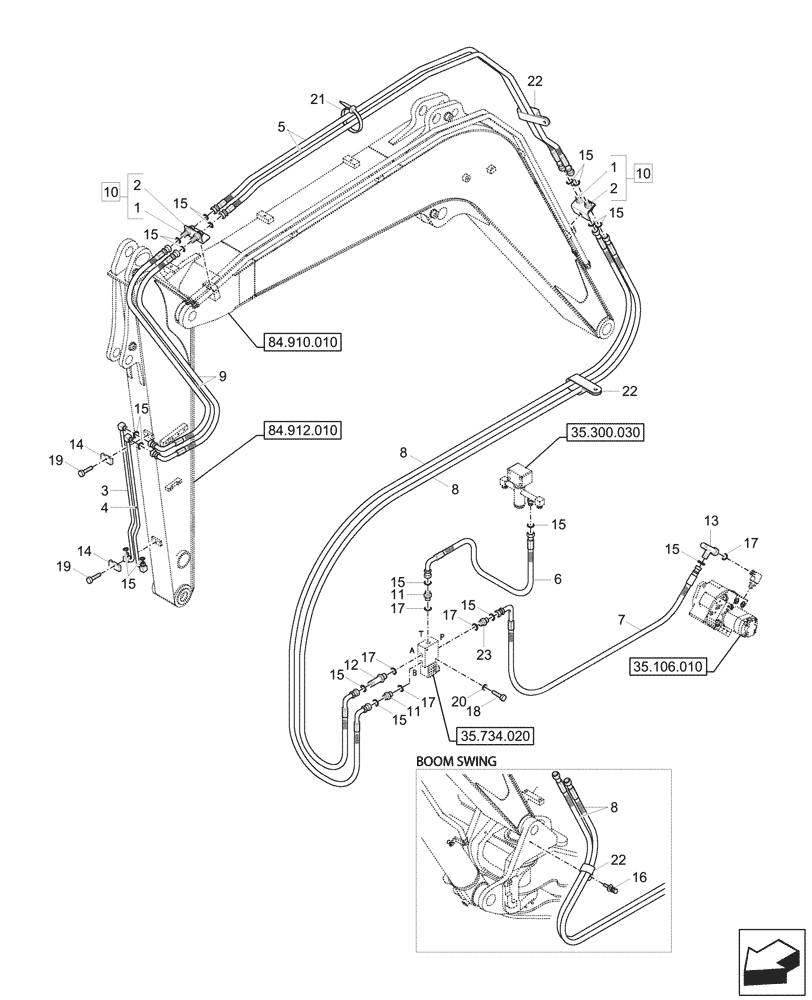

Запчасти Case CX57C (35.734.010) - VAR - 747064, 747076, 747077 - QUICK COUPLER, LINE (35) - HYDRAULIC SYSTEMS

1

X540-120001

HYD CONNECTOR

2шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 10

2шт.

3

31M9-90111

PIPE

1шт.

4

31M9-90121

PIPE

1шт.

5

P910-045058

HYDRAULIC HOSE

2шт.

6

P930-042010

HYDRAULIC HOSE

1шт.

7

P930-045046

HYDRAULIC HOSE

1шт.

8

P930-045056

HYDRAULIC HOSE

2шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

8

31M8-10830

HYDRAULIC HOSE

2шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

9

P933-045020

HYDRAULIC HOSE

2шт.

Short Arm (1.6M), Var. 747078, 747320

1шт.

9

P933-045027

HYDRAULIC HOSE

2шт.

Long Arm (1.9M), Var. 747079, 747329

1шт.

10

31M8-90131

TERMINAL

ASSY, Incl 1, 2

2шт.

11

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

12

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

13

31N4-22170

TEE

1шт.

14

31M6-75091

CLAMP

3шт.

15

S621-011001

O-RING,9/16 - 18 UNF

21шт.

16

S037-102526

BOLT,M10 x 1.5 x 25mm

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

17

S631-011004

O-RING,PF 1/4

5шт.

18

S015-080506

BOLT,M8 x 1.25 x 50mm

2шт.

19

S035-082526

BOLT,M8 x 1.25 x 25mm

3шт.

20

S411-080006

WASHER

2шт.

21

S554-054300

BAND

10шт.

22

31HA-10130

CLAMP

3шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

22

31HA-10130

CLAMP

4шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

23

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.
