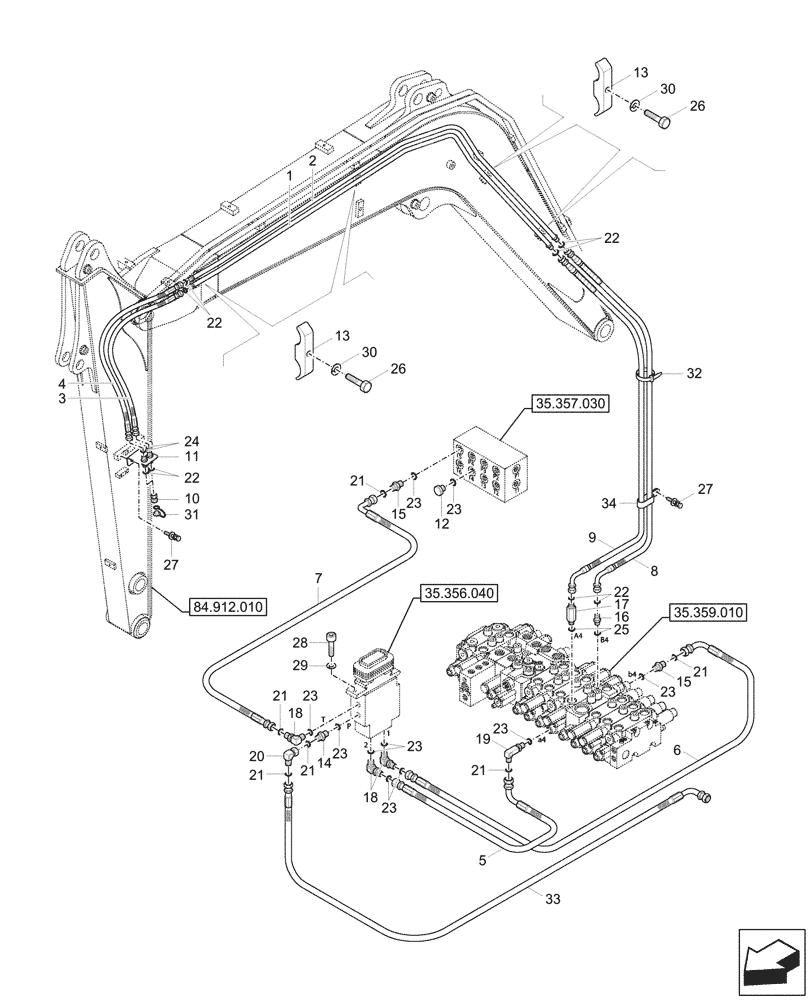

Запчасти Case CX57C (35.360.020) - VAR - 747076, 747123 - CONTROL VALVE, HAMMER, SHEARS, LINES (35) - HYDRAULIC SYSTEMS

1

31M9-90630CA

PIPE

1шт.

2

31M9-90640CA

PIPE

1шт.

3

P913-065017

HYDRAULIC HOSE

1шт.

Short Arm (1.6M), Var. 747078, 747320

1шт.

3

P913-065022

HYDRAULIC HOSE

1шт.

Long Arm (1.9M), Var. 747079, 747329

1шт.

4

P913-065018

HYDRAULIC HOSE

1шт.

Short Arm (1.6M), Var. 747078, 747320

1шт.

4

P913-065023

HYDRAULIC HOSE

1шт.

Long Arm (1.9M), Var. 747079, 747329

1шт.

5

P930-042010

HYDRAULIC HOSE

1шт.

6

P930-042020

HYDRAULIC HOSE

1шт.

7

P930-042037

HYDRAULIC HOSE

1шт.

8

32M9-13910

HYDRAULIC HOSE

1шт.

9

32M9-13920

HYDRAULIC HOSE

1шт.

10

31M8-95410

COUPLING

Female

2шт.

11

31M9-95300

TERMINAL

1шт.

12

P220-110102

PLUG

1шт.

13

31M6-65100

CLAMP

4шт.

14

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

15

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

16

X500-110015

HYD CONNECTOR

1шт.

17

X511-108524

HYD CONNECTOR

Long

1шт.

18

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

19

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

long

1шт.

20

X850-515100

90 ELBOW

Swivel

1шт.

21

S621-011001

O-RING,9/16 - 18 UNF

8шт.

22

S621-012001

O-RING

8шт.

23

S631-011004

O-RING,PF 1/4

8шт.

24

S631-014004

O-RING

2шт.

25

S631-018004

O-RING

2шт.

26

S017-100456

BOLT

4шт.

27

S037-102526

BOLT,M10 x 1.5 x 25mm

3шт.

28

S109-080206

BOLT

2шт.

29

S411-080006

WASHER

2шт.

30

S411-100006

WASHER

4шт.

31

31M8-95510

PLUG

Rubber

2шт.

32

S551-050203

CLAMP

10шт.

33

P910-042024

HYDRAULIC HOSE

1шт.

34

31HA-10130

CLAMP

1шт.
