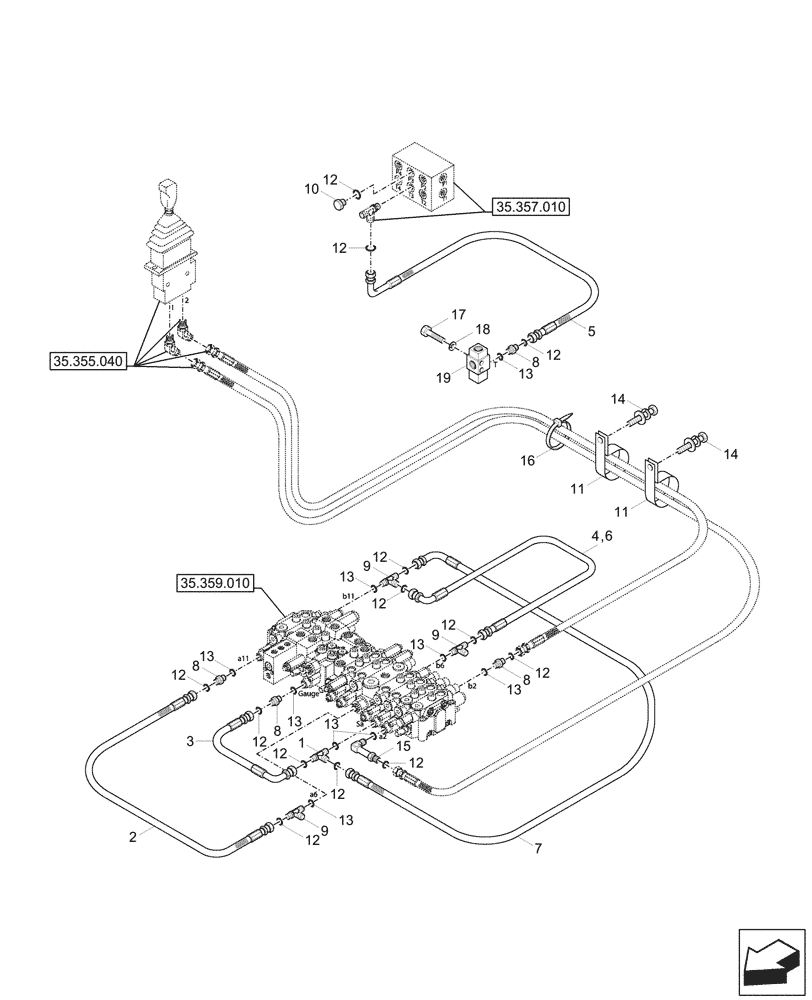

Запчасти Case CX57C (35.359.120) - VAR - 747076, 747077 - CONTROL VALVE, DOZER, LINES (35) - HYDRAULIC SYSTEMS

1

31N6-24120

TEE

1шт.

2

P910-042012

HYDRAULIC HOSE

1шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

2

P910-042011

HYDRAULIC HOSE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

3

P930-042009

HYDRAULIC HOSE

1шт.

4

P930-042010

HYDRAULIC HOSE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

5

P930-042015

HYDRAULIC HOSE

1шт.

6

P930-042011

HYDRAULIC HOSE

1шт.

Upper Frame With Fixed Boom, Var. 747077

1шт.

6

P930-042009

HYDRAULIC HOSE

1шт.

Upper Frame With Swing Boom, Var. 747076

1шт.

7

P930-042026

HYDRAULIC HOSE

1шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

9

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

3шт.

10

P220-110102

PLUG

1шт.

11

31F7-70330

CLAMP

2шт.

12

S621-011001

O-RING,9/16 - 18 UNF

13шт.

13

S631-011004

O-RING,PF 1/4

8шт.

14

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

15

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

16

S551-050203

CLAMP

10шт.

17

S015-080556

BOLT

2шт.

18

S411-080006

WASHER

2шт.

19

31Q6-20150

SELECTOR

Valve

1шт.
