/ / / / / / / / (35.359.100) - VAR - 747077 - CONTROL VALVE, BOOM, LINES

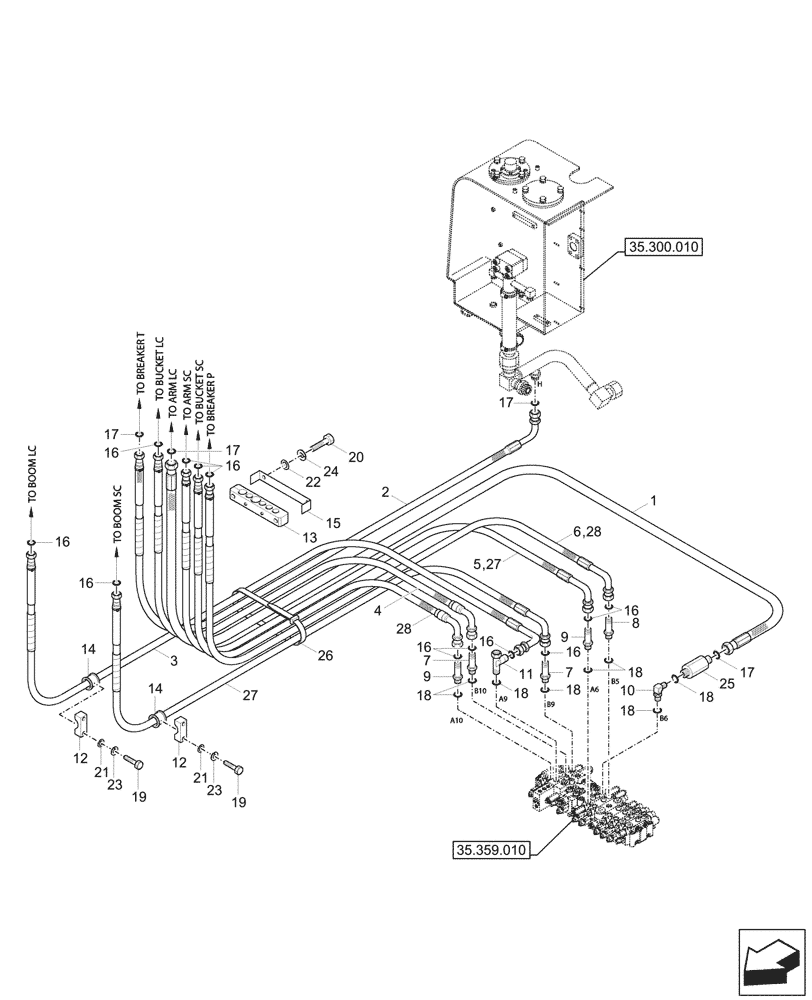

Запчасти Case CX57C (35.359.100) - VAR - 747077 - CONTROL VALVE, BOOM, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
9
16
27
16
11
6
17
21
3
15
2
1
17
27
5
9
16
19
23
28
25
19
14
21
7
18
4
18
10
14
16
16
17
16
8
16
18
7
28
12
20
17
13
18
24
23
22
26
16
12
18
18
35.300.010
1
31M9-11760
HYDRAULIC HOSE
1шт.
2
31M9-12840
HYDRAULIC HOSE
1шт.
3
32M9-11810
HYDRAULIC HOSE
1шт.
4
32M9-11850
HYDRAULIC HOSE
1шт.
5
32M9-12810
HYDRAULIC HOSE
1шт.
6
32M9-12840
HYDRAULIC HOSE
1шт.
7
X511-108534
HYD CONNECTOR
2шт.
8
X511-108533
HYD CONNECTOR
1шт.
9
X511-108535
HYD CONNECTOR
2шт.
10
31M8-10440
ELBOW
1шт.
11
X820-085353
TEE
1шт.
12
31M9-10460CG
CLAMP
2шт.
13
31M9-10381
CLAMP
Rubber
1шт.
14
31M9-10470
GROMMET
2шт.
15
31M9-10410
PLATE
1шт.
16
S621-014001
O-RING
12шт.
17
S621-018001
O-RING
4шт.
18
S631-018004
O-RING
8шт.
19
S015-080456
BOLT
4шт.
20
S017-100656
BOLT
2шт.
21
S403-08200B
WASHER
4шт.
22
S403-10200B
WASHER
2шт.
23
S411-080006
WASHER
4шт.
24
S411-100006
WASHER
2шт.
25
X511-108547
HYD CONNECTOR
1шт.
26
S551-050203
CLAMP
5шт.
27
32M9-11820
HYDRAULIC HOSE
1шт.
28
32M9-11860
HYDRAULIC HOSE
1шт.
