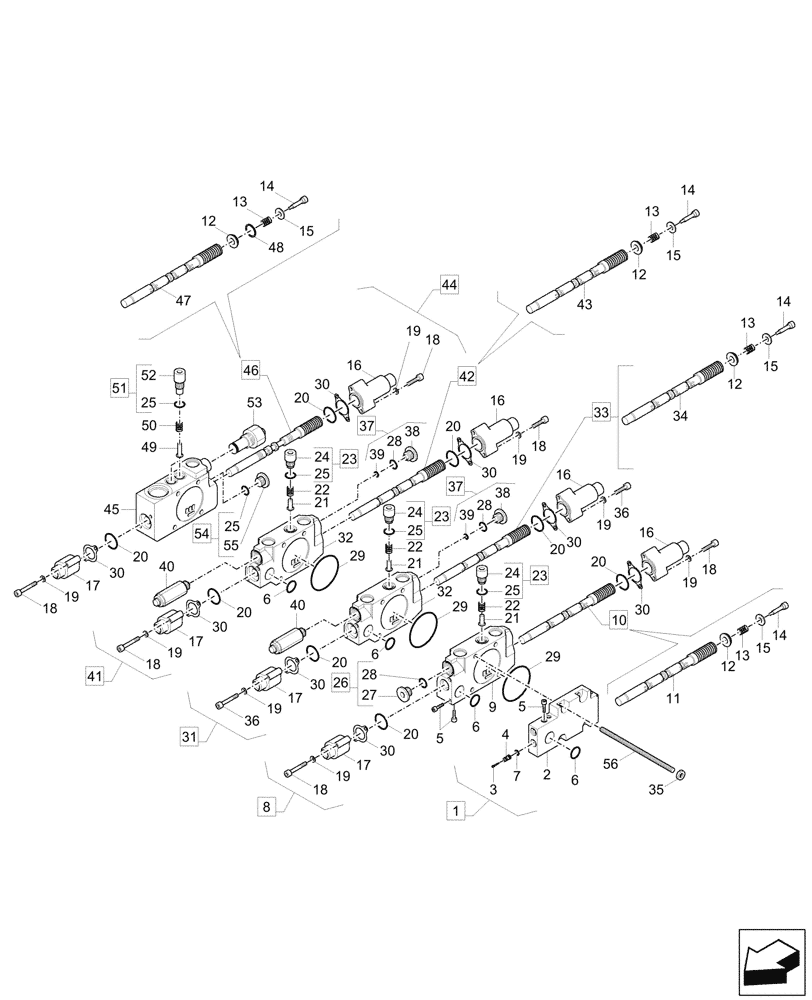

Запчасти Case CX57C (35.359.060) - VAR - 747076, 747093, 747122, 747123 - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

XKCG-00318

COVER

AI Port Cover, ASSY, Incl 2 - 4, 5 (Qty 1), 6 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

XKCG-00098

ORIFICE

1шт.

4

XKCG-00044

FILTER

1шт.

5

XKCG-00050

SCREW

3шт.

6

XKCG-00097

O-RING

4шт.

7

XKCG-00566

O-RING

1шт.

8

XKCG-00122

VALVE SECTION

Swing, ASSY, Incl 5 (Qty 2), 6 (Qty 1), 9 - 30

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 8

1шт.

10

XKCG-00126

KIT

Spool, ASSY, Incl 11, 12 (Qty 1), 13 (Qty 1), 14 (Qty 1), 15 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Spool, Incl in 10

1шт.

12

XKCG-00109

SPRING SEAT

4шт.

13

XKCG-00108

SPRING

4шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Incl in 10, 33, 44, 46

4шт.

15

XKCG-00106

SPRING SEAT

4шт.

16

XKCG-00118

CAP

4шт.

17

XKCG-00115

CAP

4шт.

18

XKCG-00117

ADJUSTING WRENCH

12шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 8, 31, 41

16шт.

20

XKCG-00119

O-RING

8шт.

21

XKCG-00090

POPPET

3шт.

22

XKCG-00091

SPRING

3шт.

23

XKCG-00092

PLUG

ASSY, Incl 24 (Qty 1), 25 (Qty 1)

3шт.

24

XKCG-00104

PLUG

M14

3шт.

25

XKCG-00103

O-RING

5шт.

26

XKCG-00125

PLUG

ASSY, Incl 27, 28 (Qty 1)

2шт.

27

XKCG-00123

PLUG

PF3/8

1шт.

28

XKCG-00059

O-RING

3шт.

29

XKCG-00112

O-RING

3шт.

30

XKCG-00111

GASKET

8шт.

31

XKCG-00187

VALVE SECTION

Dozer, ASSY, Incl 16, 17, 19 - 23, 32 (Qty 1), 33, 36, 37 (Qty 1), 40 (Qty 1)

1шт.

32

NSS

NOT SOLD SEPARAT

Body, Incl in 31, 41

2шт.

33

XKCG-00135

KIT

Spool, ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1), 15 (Qty 1), 34

1шт.

34

NSS

NOT SOLD SEPARAT

Spool, Incl in 33

1шт.

35

XKCG-00201

NUT

4шт.

36

XKCG-00073

BOLT

4шт.

37

XKCG-00113

PLUG

ASSY, Incl 28 (Qty 1), 38, 39

2шт.

38

NSS

NOT SOLD SEPARAT

Plug, Incl in 37

2шт.

39

XKCG-00101

O-RING

2шт.

40

XKCG-00134

VALVE

ACV

2шт.

41

XKCG-00216

VALVE SECTION

Boom/Swing, Incl 16 - 23, 29, 30, 32 (Qty 1), 37 (Qty 1), 40 (Qty 1), 42 , 43

1шт.

42

XKCG-00218

KIT

Spool, Boom/Swing, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1), 15 (Qty 1), 43

1шт.

43

NSS

NOT SOLD SEPARAT

Spool, Incl in 43

1шт.

44

XKCG-00188

VALVE SECTION

Inlet, ASSY, Incl 16 - 20, 30, 45 - 55

1шт.

45

NSS

NOT SOLD SEPARAT

Body, Incl in 44

1шт.

46

XKCG-00145

SPOOL

Spool, Selector, ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1), 15 (Qty 1), 47, 48

1шт.

47

NSS

NOT SOLD SEPARAT

Spool, Incl in 46

1шт.

48

XKCG-00105

SHIM

2шт.

49

XKCG-00144

POPPET

2шт.

50

XKCG-00143

SPRING

2шт.

51

XKCG-00142

PLUG

ASSY, Incl 25 (Qty 1), 52

2шт.

52

NSS

NOT SOLD SEPARAT

Plug, M14, Incl in 51

1шт.

53

XKCG-00588

HYDRAULIC VALVE

Relief

1шт.

54

XKCG-00140

CAP

ASSY, Incl 25 (Qty 1), 55

1шт.

55

NSS

NOT SOLD SEPARAT

Plug, PF1/4, Incl in 54

1шт.

56

XKCG-00211

BOLT

4шт.

Double Acting Circuit, Var. 747122, 747123

1шт.

56

XKCG-00212

BOLT

4шт.

Single Acting Circuit, Var. 747093

1шт.
