(35.106.020) - HYDRAULIC PUMP, COMPONENTS

Запчасти Case CX37C (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

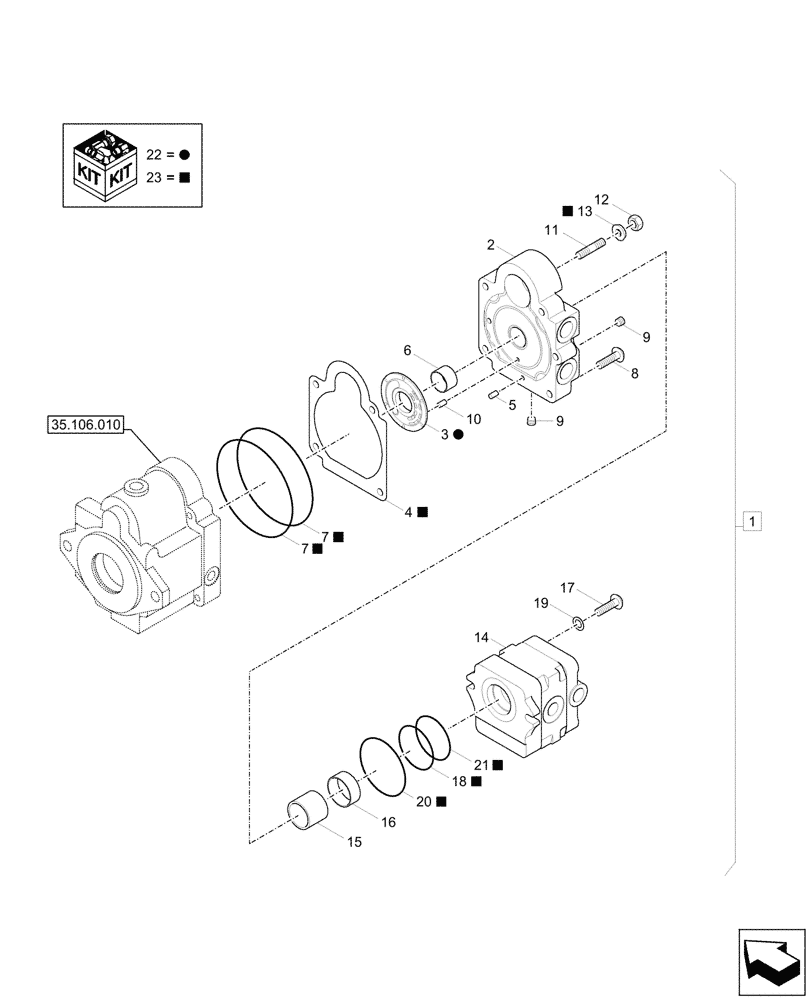

Схема запчастей Case CX37C - (35.106.020) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.106.010
18
3
6
22
8
10
22
23
23
11
21
12
4
2
23
5
23
23
22
17
7
9
23
9
14
23
7
15
20
23
16
19
13
1
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

33MH-10010

PUMP

ASSY, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Packing, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Needle, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

5шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

7шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

14

XJDK-00214

GEAR

1шт.

15

NSS

NOT SOLD SEPARAT

Coupling, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Collar, Incl 1

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

22

XJDK-00126

SEAL KIT

ASSY, Incl 4, 7, 13, 18, 20, 21

1шт.

23

XJDK-00125

KIT

Cylinder Barrel, ASSY, Incl 3

1шт.
