(55.404.020) - WORKING LIGHT, CANOPY

Запчасти Case CX37C (55.404.020) - WORKING LIGHT, CANOPY (55) - ELECTRICAL SYSTEMS

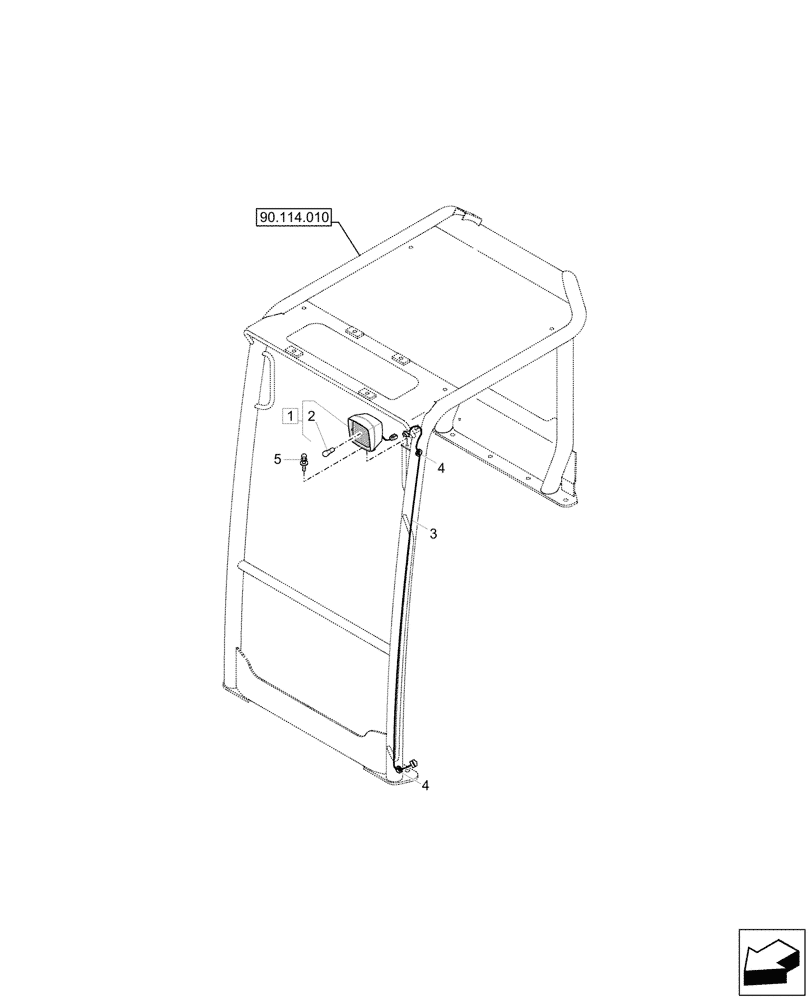

Схема запчастей Case CX37C - (55.404.020) - WORKING LIGHT, CANOPY (55) - ELECTRICAL SYSTEMS
90.114.010
4
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2LM9-42000

WORK LAMP

ASSY, Incl 2

1шт.

1

2LM9-42000

WORK LAMP

ASSY, Incl 2

1шт.

Auxiliary Working Light, Var. 747057

1шт.

2

S866-120550

BULB

1шт.

3

21MK-00700

WIRE HARNESS

Work Lamp, Canopy, ASSY, Incl 4

1шт.

3

21MK-00700

WIRE HARNESS

Work Lamp, Canopy, ASSY, Incl 4

1шт.

Auxiliary Working Light, Var. 747057

1шт.

4

S880-125040

GROMMET

2шт.

5

S037-102026

BOLT,M10 x 1.5 x 20mm

1шт.

5

S037-102026

BOLT,M10 x 1.5 x 20mm

1шт.

Auxiliary Working Light, Var. 747057

1шт.

Выбрано товаров: 11
