(35.360.020) - VAR - 405033, 405035 - HAMMER, SHEARS, LINES

Запчасти Case CX37C (35.360.020) - VAR - 405033, 405035 - HAMMER, SHEARS, LINES (35) - HYDRAULIC SYSTEMS

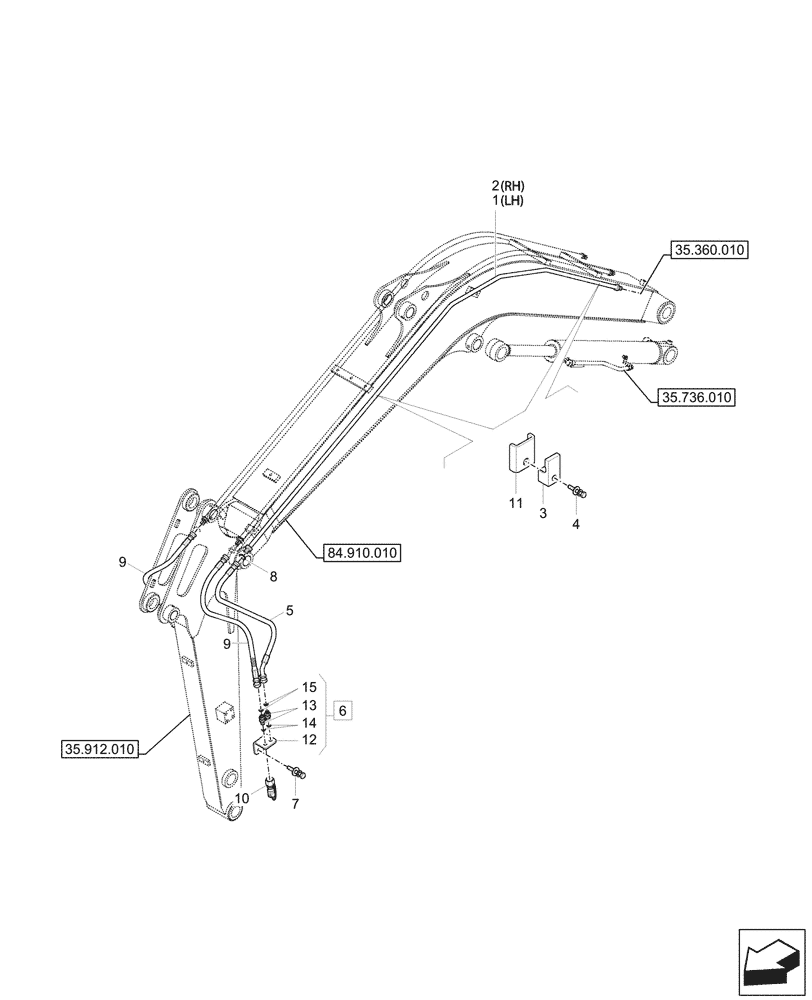

Схема запчастей Case CX37C - (35.360.020) - VAR - 405033, 405035 - HAMMER, SHEARS, LINES (35) - HYDRAULIC SYSTEMS
35.736.010
2
27
7
8
3
10
9
12
4
5
6
14
26
15
2
1
76284.910.
35.360.010
35.912.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

33MH-95011CA

PIPE

1шт.

2

33MH-95021CA

PIPE

1шт.

3

S581-217000

CLAMP

6шт.

4

S037-105026

BOLT

6шт.

5

P924-085020

HYDRAULIC HOSE

ARM 1.3M

2шт.

Arm Short (1.3M) with Hammer Joystick and Flow Circuit, Var. 405033

1шт.

5

P924-085028

HYDRAULIC HOSE

ARM 1.6M

2шт.

Arm Long (1.6M) with Hammer Joystick and Flow Circuit , Var. 405035

1шт.

6

33MH-95301

TERMINAL

ASSY, Incl 12 - 15

2шт.

7

S037-102026

BOLT,M10 x 1.5 x 20mm

4шт.

8

S621-014001

O-RING

2шт.

9

P914-085019

HOSE

ARM 1.3M

2шт.

Arm Short (1.3M) with Hammer Joystick and Flow Circuit, Var. 405033

1шт.

9

P924-085029

HYDRAULIC HOSE

ARM 1.6M

2шт.

Arm Long (1.6M) with Hammer Joystick and Flow Circuit , Var. 405035

1шт.

10

31M8-95470

COUPLING

4шт.

11

31MK-50420

BRACKET

4шт.

12

NSS

NOT SOLD SEPARAT

Plate, Incl in 6

1шт.

13

33MH-95310

HYD CONNECTOR

2шт.

14

S631-018004

O-RING

2шт.

15

S621-014001

O-RING

2шт.
