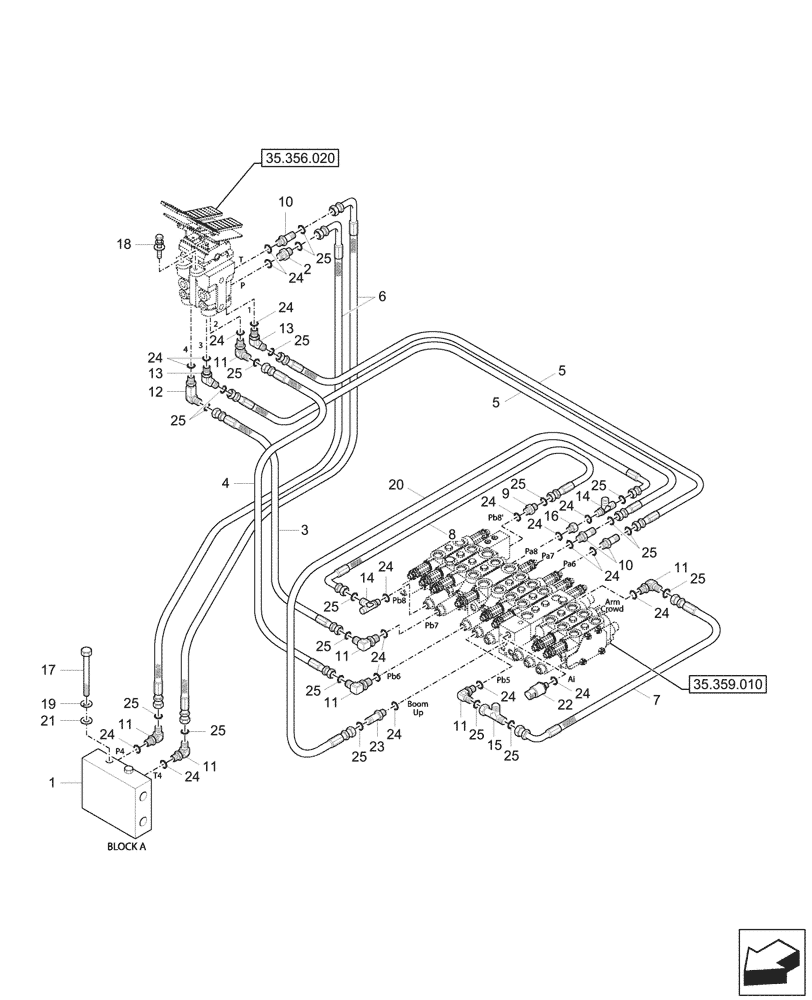

Запчасти Case CX37C (35.357.030) - PILOT CONTROLS, FOOT PEDAL, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

31MH-20091

BLOCK

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

3

X400-042005

HYDRAULIC HOSE,9/16 - 18 UNF x 250mm

1шт.

4

X400-042006

HYDRAULIC HOSE,9/16 - 18 UNF x 300mm

1шт.

Without Travel Alarm, Var. 747994

1шт.

5

X400-042016

HYDRAULIC HOSE

2шт.

Without Travel Alarm, Var. 747994

1шт.

6

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

2шт.

7

X420-042012

HYDRAULIC HOSE,9/16 - 18 UNF x 600mm

1шт.

8

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

1шт.

9

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

Without Travel Alarm, Var. 747994

1шт.

11

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

Without Travel Alarm, Var. 747994

1шт.

11

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

12

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

13

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

14

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

2шт.

15

X840-515151

TEE,9/16 - 18 UNF

1шт.

16

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

1шт.

17

S015-081006

BOLT,M8 x 1.25 x 100mm

2шт.

18

S035-082526

BOLT,M8 x 1.25 x 25mm

4шт.

19

S411-080006

WASHER

2шт.

20

X420-042018

HYDRAULIC HOSE,9/16 - 18 UNF x 900mm

1шт.

21

S403-08200B

WASHER

2шт.

22

31Q4-40860

SENSOR

1шт.

23

X511-104514

HYD CONNECTOR

1шт.

24

S631-011004

O-RING,PF 1/4

20шт.

25

S621-011001

O-RING,9/16 - 18 UNF

20шт.
