Запчасти Case CX37C (35.357.020) - PILOT CONTROLS, DOZER (35) - HYDRAULIC SYSTEMS

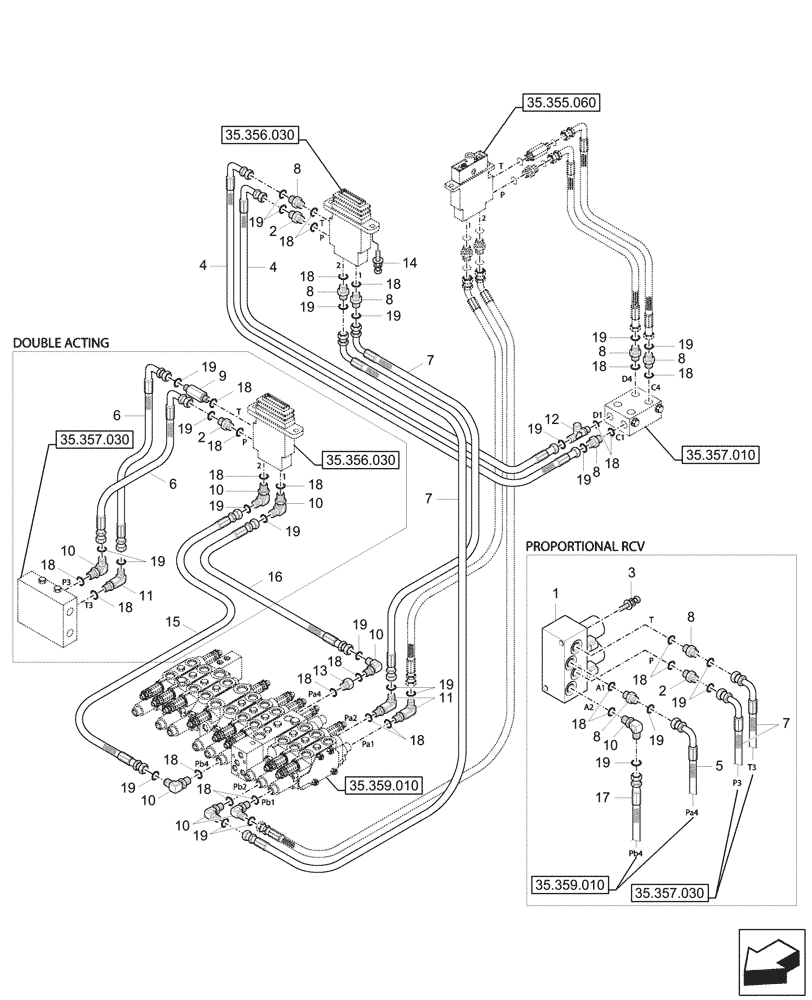

Схема запчастей Case CX37C - (35.357.020) - PILOT CONTROLS, DOZER (35) - HYDRAULIC SYSTEMS
35.357.030
4
8
3
18
14
18
8
1
18
8
19
7
19
8
19
10
18
11
10
19
10
18
6
19
18
10
19
18
18
16
19
18
19
12
19
11
19
17
15
10
9
8
5
18
4
18
2
18
8
19
19
18
13
18
2
7
19
19
18
10
7
18
19
2
6
19
10
18
18
18
8
8
19
19
19
35.357.010
35.356.030
35.356.030
35.355.060
35.359.010
35.359.010
35.357.030

№

Артикул

Название

Примечание

Количество

1

32MJ-20050

HYDRAULIC VALVE

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

3

S035-086526

BOLT,M8 x 1.25 x 65mm

2шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

4

X420-042007

HYDRAULIC HOSE,9/16 - 18 UNF x 350mm

2шт.

5

X420-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

6

X420-042012

HYDRAULIC HOSE,9/16 - 18 UNF x 600mm

2шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

7

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

2шт.

7

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

4шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

6шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

8шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

9

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

4шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

7шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

11

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

3шт.

12

X820-045151

TEE,PF 1/4 x 9/16 - 18 UNF x 9/16 - 18 UNF

1шт.

13

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

14

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

15

X400-042005

HYDRAULIC HOSE,9/16 - 18 UNF x 250mm

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

16

X400-042014

HYDRAULIC HOSE

1шт.

Hammer Pedal and without Flow Circuit, Var. 405028, 405030

1шт.

17

X400-042020

HYDRAULIC HOSE

1шт.

Hammer Joystick and without Flow Circuit, Var. 405032, 405034

1шт.

18

S631-011004

O-RING,PF 1/4

25шт.

19

S621-011001

O-RING,9/16 - 18 UNF

24шт.

Выбрано товаров: 40
