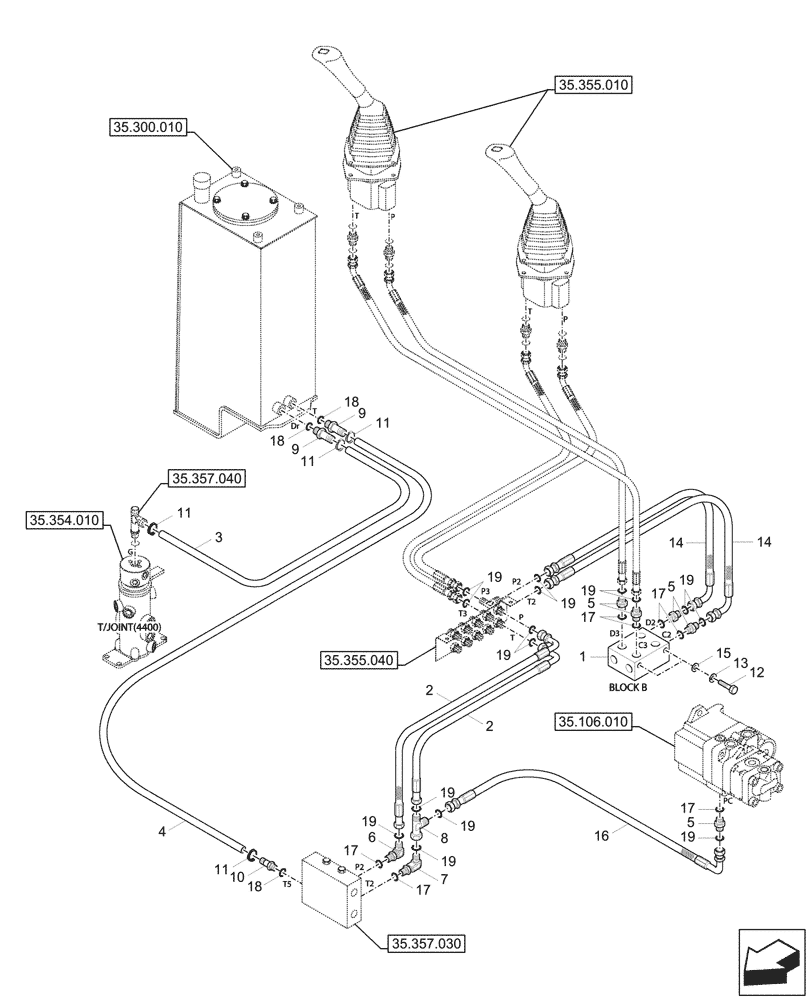

Запчасти Case CX37C (35.357.010) - PILOT CONTROLS, JOYSTICK (35) - HYDRAULIC SYSTEMS

1

31MH-20112

BLOCK

1шт.

2

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

2шт.

3

P760-023030

HOSE,11.5mm ID x 19.7mm OD x 300mm

1шт.

4

P760-023130

HOSE,11.5mm ID x 19.7mm OD x 1300mm

1шт.

5

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

3шт.

6

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

7

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

8

X840-515151

TEE,9/16 - 18 UNF

1шт.

9

31MH-20161

HYD CONNECTOR

2шт.

10

31MH-20171

HYD CONNECTOR

1шт.

11

31MH-10830

CLAMP

4шт.

12

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

13

S411-080006

WASHER

2шт.

14

X420-042018

HYDRAULIC HOSE,9/16 - 18 UNF x 900mm

2шт.

Travel Alarm, Var. 747453

1шт.

15

S403-08200B

WASHER

2шт.

16

X420-042027

HOSE

1шт.

Heater Only, Var. 747988

1шт.

Without A/C and Heater, Var. 747991

1шт.

17

S631-011004

O-RING,PF 1/4

7шт.

18

S631-014004

O-RING

3шт.

19

S621-011001

O-RING,9/16 - 18 UNF

15шт.
