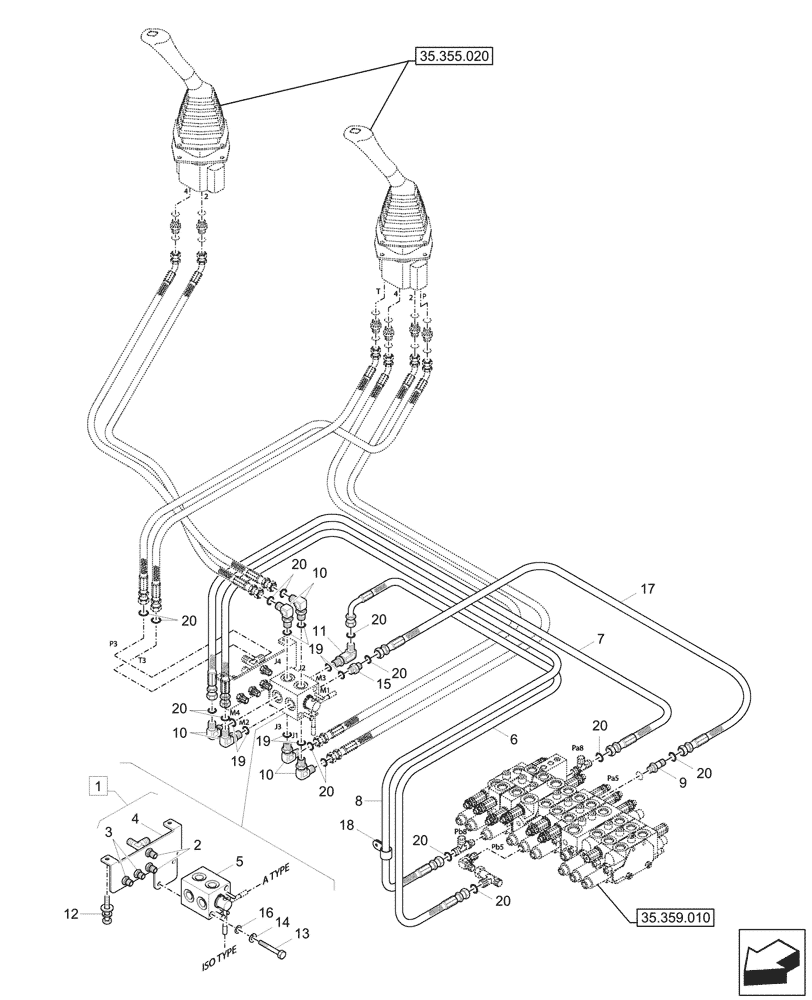

Запчасти Case CX37C (35.355.050) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

31MH-20264

TERMINAL

ASSY, Incl 2 - 4

1шт.

With Pattern Change, Var. 405049

1шт.

2

31MH-20200

TEE

2шт.

3

31MH-20270

HYD CONNECTOR

4шт.

4

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

5

31N6-22050

VALVE,PF 1/4

1шт.

With Pattern Change, Var. 405049

1шт.

6

X420-042012

HYDRAULIC HOSE,9/16 - 18 UNF x 600mm

1шт.

With Pattern Change, Var. 405049

1шт.

7

X410-042014

HYDRAULIC HOSE,9/16 - 18 UNF x 700mm

1шт.

With Pattern Change, Var. 405049

1шт.

8

X410-042016

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 405049

1шт.

9

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

11

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

With Pattern Change, Var. 405049

1шт.

Hammer Joystick and with Flow Circuit, Var. 405033, 405035

1шт.

12

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

With Pattern Change, Var. 405049

1шт.

13

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

14

S411-080006

WASHER

2шт.

With Pattern Change, Var. 405049

1шт.

15

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

With Pattern Change, Var. 405049

1шт.

16

S403-08200B

WASHER

2шт.

With Pattern Change, Var. 405049

1шт.

17

X410-042011

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 405049

1шт.

18

31L7-10190

CLAMP,15mm ID

1шт.

19

S631-011004

O-RING,PF 1/4

8шт.

20

S621-011001

O-RING,9/16 - 18 UNF

12шт.
