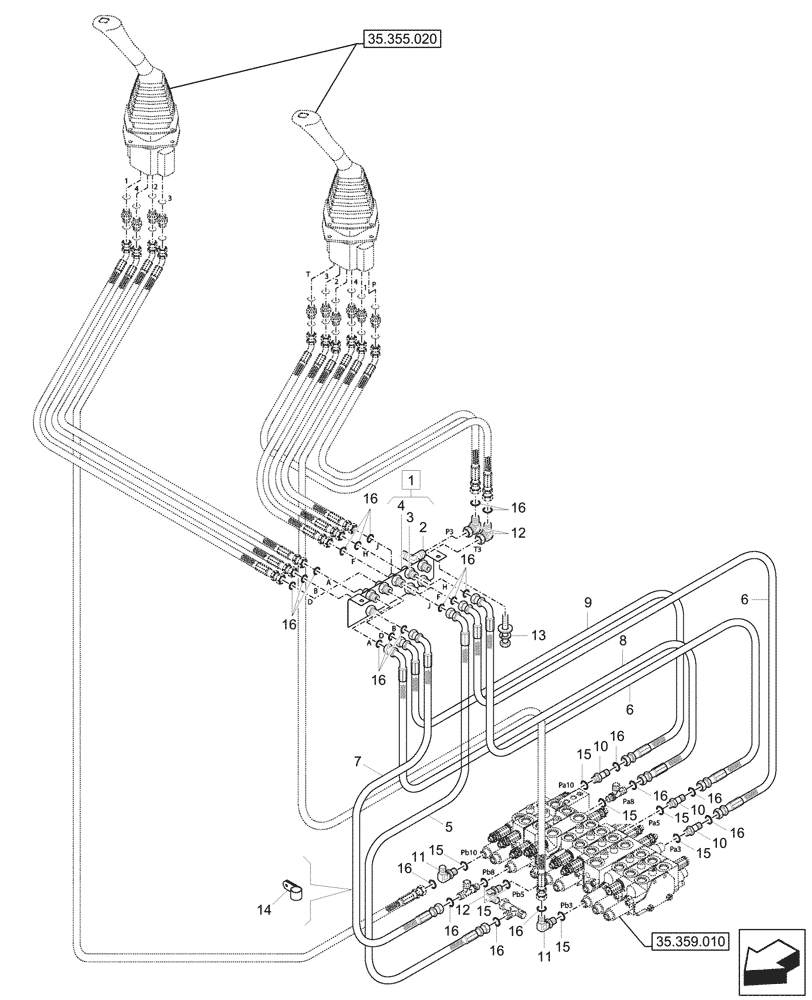

Запчасти Case CX37C (35.355.040) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

31MH-20182

TERMINAL

ASSY, Incl 2 - 4

1шт.

Without Pattern Change, Var. 405050

1шт.

2

31MH-20200

TEE

2шт.

3

X540-120001

HYD CONNECTOR

8шт.

4

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

5

X420-042008

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405050

1шт.

6

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

2шт.

7

X420-042014

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 405050

1шт.

8

X420-042020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

1шт.

Without Pattern Change, Var. 405050

1шт.

9

X420-042023

HYDRAULIC HOSE

1шт.

10

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

3шт.

11

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

12

X850-515100

90 ELBOW

3шт.

Without Pattern Change, Var. 405050

1шт.

13

S037-102026

BOLT,M10 x 1.5 x 20mm

2шт.

14

31L7-10190

CLAMP,15mm ID

1шт.

15

S631-011004

O-RING,PF 1/4

4шт.

16

S621-011001

O-RING,9/16 - 18 UNF

26шт.
