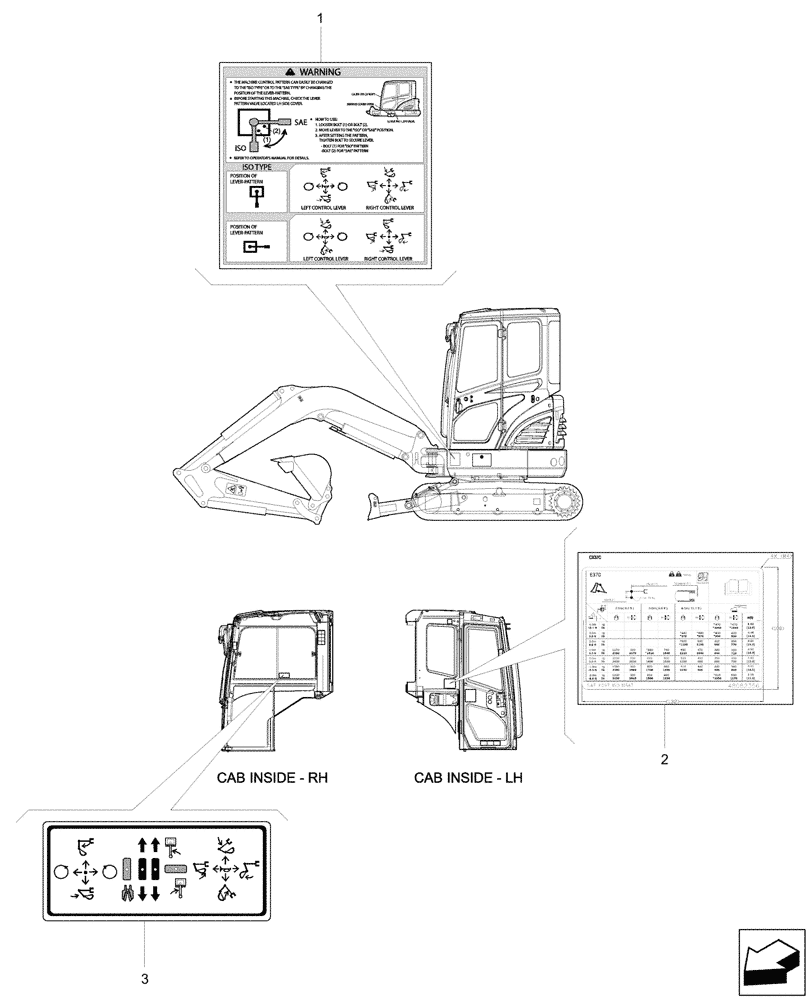

Запчасти Case CX37C (90.108.020) - VAR - 405028, 405030, 405032, 405033, 405034, 405035, 405049, 747060 - DECALS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48019340

DECAL

Machine Control

1шт.

Pattern Change, Var. 405049

1шт.

2

48082347

DECAL

Lifting Chart, Arm 1.3m, 410Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48082348

DECAL

Lifting Chart, Arm 1.3m, 560Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48082349

DECAL

Lifting Chart, Arm 1.6m, 410Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48082350

DECAL

Lifting Chart, Arm 1.6m, 560Kg

1шт.

Object Handling, Var. 747060

1шт.

With Rubber Track

1шт.

2

48083804

DECAL

Lifting Chart, Arm 1.3m, 410Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48083961

DECAL

Lifting Chart, Arm 1.3m, 560Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48083964

DECAL

Lifting Chart, Arm 1.6m, 410Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

2

48083967

DECAL

Lifting Chart, Arm 1.6m, 560Kg

1шт.

Object Handling, Var. 747060

1шт.

With Steel Track

1шт.

3

48018860

DECAL

Control

1шт.

With Hammer Pedal, Without Flow Circuit, Var. 405028, 405030

1шт.

3

48018857

DECAL

Control

1шт.

With Hammer Joystick, Without Flow Circuit, Var. 405032, 405034

1шт.

3

48019101

DECAL

Swivel Control

1шт.

With Hammer Joystick, With Flow Circuit, Var. 405033, 405035

1шт.
