(35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX37C (35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

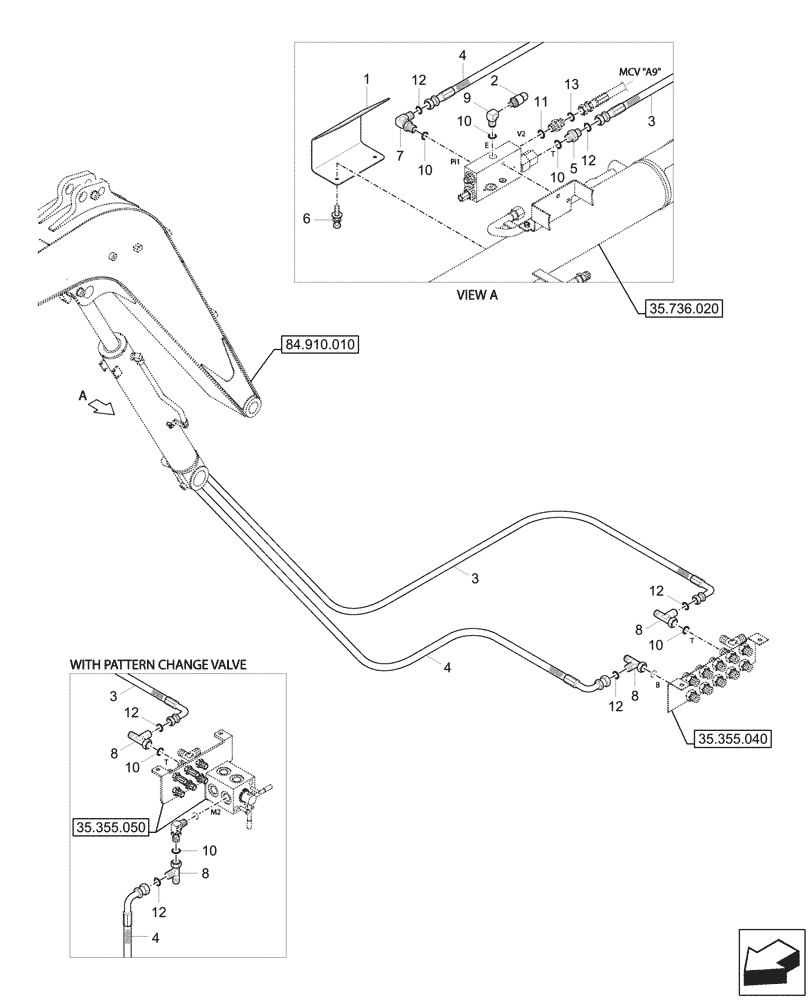

Схема запчастей Case CX37C - (35.736.030) - VAR - 747060 - BOOM CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.355.040
10
5
3
13
4
12
8
11
10
7
10
9
2
12
3
10
4
8
12
12
8
6
10
8
12
10
1
12
4
3
84.910.010
35.736.020
35.355.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31MK-97510CA

COVER

1шт.

2

31Q4-40940

SENSOR

Pressure

1шт.

3

P930-042048

HYDRAULIC HOSE

1шт.

4

P930-042052

HOSE

1шт.

5

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

6

S035-082026

BOLT,M8 x 1.25 x 20mm

2шт.

7

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

8

X840-515151

TEE,9/16 - 18 UNF

2шт.

9

31E5-11110

ADAPTER

1шт.

10

S631-011004

O-RING,PF 1/4

4шт.

11

S631-018004

O-RING

1шт.

12

S621-011001

O-RING,9/16 - 18 UNF

4шт.

13

S621-014001

O-RING

1шт.

Выбрано товаров: 13
